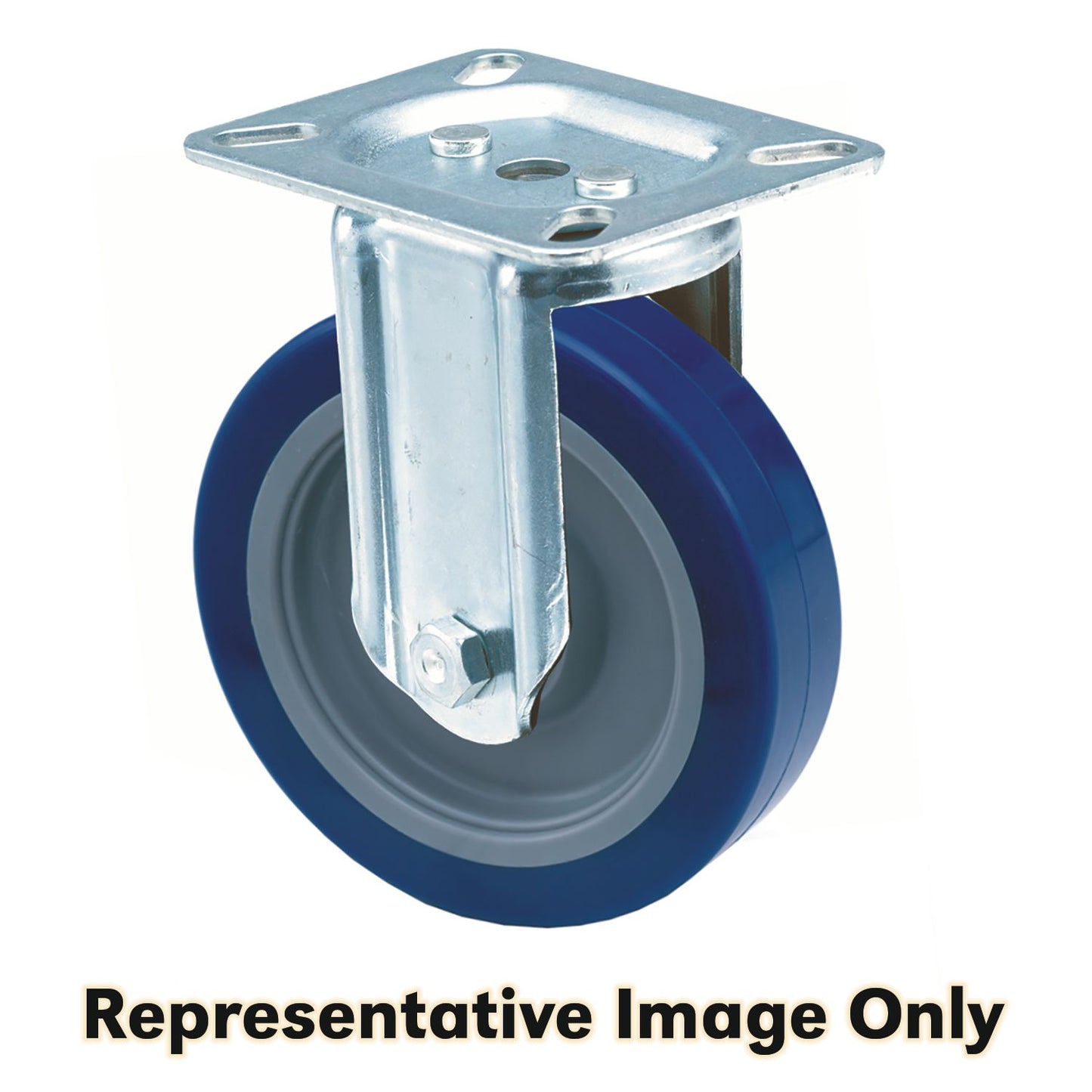

Caster, Rigid, Polyurethane Wheel, 3" Diameter, 1-1/4" Wheel Width, 210 lb Load Rating
(Pack of
1)
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 15-57
Frequently Bought Together
Caster Swivel Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Brake Kit For Institutional Casters 5" Wheel
Couldn't load pickup availability
Hook Ceiling Trade Size 6
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/2", 6,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 2,000 lb WLL
Couldn't load pickup availability
Caster Rigid Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Lite-Med Duty 3-1/2 x 1-1/4" Wheel
Couldn't load pickup availability
Caster Swivel Lite-Medium Duty 4 x 1-1/4" Wheel
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588623 |
|---|---|
| Type | Rigid |
| Style | Light-Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 3 " |
| Wheel Width | 1-1/4 " |
| Load Rating | 210 lb |
| Top Plate Overall Size | 2-3/4" x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3 " |
| Top Plate Hole Diameter | 11/32 " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 1.14 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
