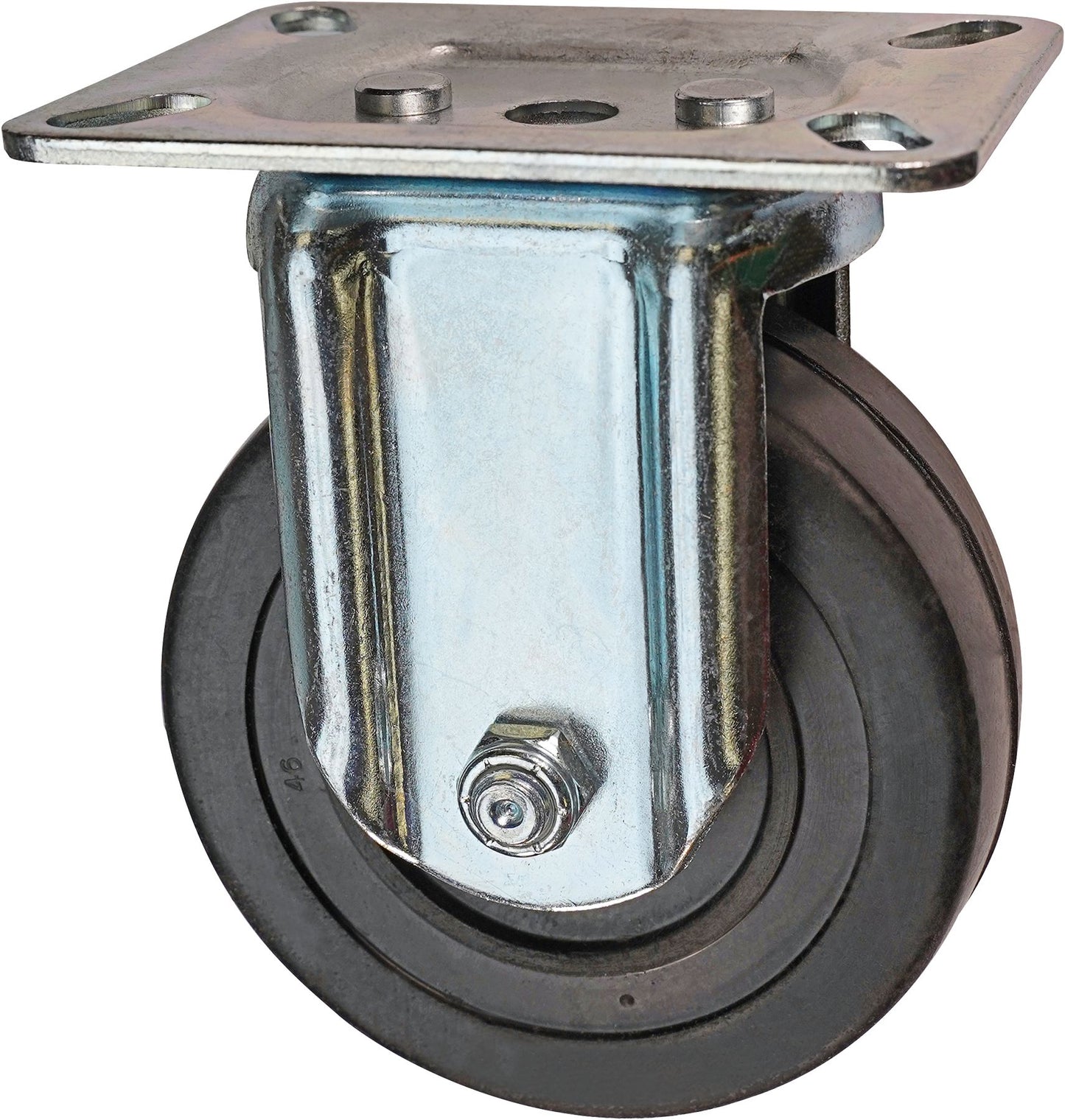

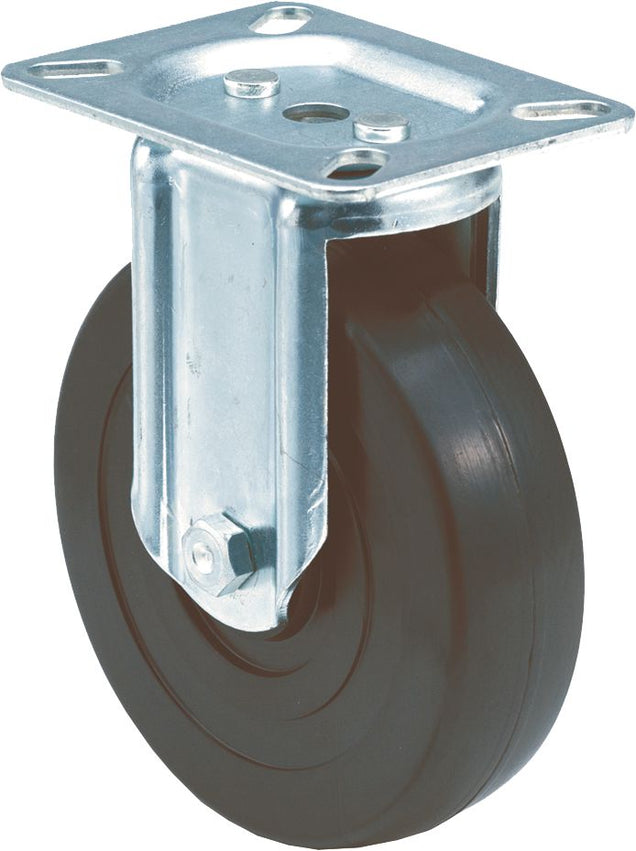

Caster Rigid Soft Rubber Wheel
(Pack of
1.0)
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 15-57
Frequently Bought Together
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 6" Long
Couldn't load pickup availability
Wire Rope Sleeve, 1/8", Aluminum
Couldn't load pickup availability
Caster Swivel Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Institutional 5 x 1-3/8" Wheel
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588625 |
|---|---|
| Type | Rigid |
| Style | Medium Duty |
| Wheel Type | Soft Rubber |
| Wheel Diameter | 4 " |
| Wheel Width | 1-3/8 " |
| Load Rating | 200 lb |
| Top Plate Overall Size | 3-1/8" x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3" to 2-3/8" x 3-3/8 " |
| Top Plate Hole Diameter | 3/8" x 3/4" slots |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 2.205 lb |
