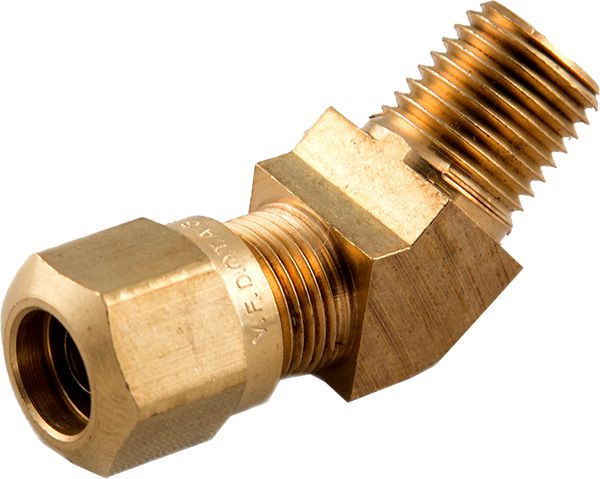

DOT Air Brake Compression Elbow for Nylon Tubing, 45°, Male, Brass, 1/2" x 1/4-18, Tube x Pipe
(Pack of
2)
SKU:1511587 Item#: 1511587
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
DOT Compression Elbow Male 45° Brass 1/4 x 1/8"
Couldn't load pickup availability
DOT Compression Sleeve Brass 3/8"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 1/2 x 1/4"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 3/8-18
Couldn't load pickup availability
Ball Check Grease Fitting 45°
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 1/4 x 1/8"
Couldn't load pickup availability
Grease Gun Thin Nose Hydraulic Coupler 1/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 13/16 to 1-1/2"
Couldn't load pickup availability
Hose Clamp 304 SS 7/16 to 25-32"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Ice Melter with Propel® 65lb
Couldn't load pickup availability
9/16" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
3/4" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
Ice Melter with Propel® 65lb
Couldn't load pickup availability
9/16" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
3/4" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 1511587 |
|---|---|
| Manufacturer Model #: | 84313 |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Elbow 45 Degrees |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 1/2 " |
| Fitting Dimension B | 1/4-18 |
| Size | 1/2X1/4 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.39 lb |
