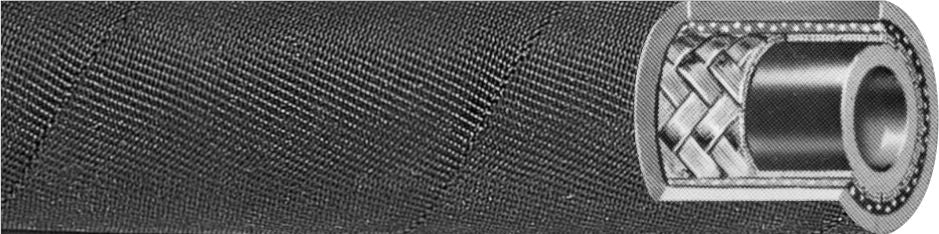

Weatherhead H145 Hydraulic Hose, Neoprene, 1-Steel Braided, 1/4" ID, 15/32" OD, 250' Length, 3045PSI, SAE 100R17
(Pack of
250)
SKU:64626 04 Item#: 64626 04
250 ft. rolls consist of no more than three pieces with none shorter than 25 feet. Total length may vary ±25%.
• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series; U-Series (-6 through -12); 430 U-Series (-16 only); S-Series (except -4 and -10)
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: Single braid (-4, -6); double braid (-8 through -16)
– Cover: Neoprene
• Temperature Range:
– -4 through -8: –40°F to +250°F (–40°C to +121°C)
– -10 through -16: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,045 PSI working pressure rating for all sizes
Important: Weatherhead no longer supports the use of the U Series fitting on the 1/4" H145. The Z Series fitting is the only approved fitting for this diameter of the H145.
*Use 430 U-Series fittings only. Must be crimped with T-420, T-440 or T-480 crimpers and corresponding dies and rings.
*Use 430 U-Series fittings only. Must be crimped with T-420, T-440 or T-480 crimpers and corresponding dies and rings.
Frequently Bought Together
MXT Hydraulic Hose Rubber 0.55" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.94" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.468 x 0.078"
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.55" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.94" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Product Description
250 ft. rolls consist of no more than three pieces with none shorter than 25 feet. Total length may vary ±25%.• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series; U-Series (-6 through -12); 430 U-Series (-16 only); S-Series (except -4 and -10)
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: Single braid (-4, -6); double braid (-8 through -16)
– Cover: Neoprene
• Temperature Range:
– -4 through -8: –40°F to +250°F (–40°C to +121°C)
– -10 through -16: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,045 PSI working pressure rating for all sizes
Important: Weatherhead no longer supports the use of the U Series fitting on the 1/4" H145. The Z Series fitting is the only approved fitting for this diameter of the H145.
*Use 430 U-Series fittings only. Must be crimped with T-420, T-440 or T-480 crimpers and corresponding dies and rings.
*Use 430 U-Series fittings only. Must be crimped with T-420, T-440 or T-480 crimpers and corresponding dies and rings.
Technical Specifications
| Item#: | 64626 04 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating | MSHA Accepted, Marine Application J1942/1 Hydraulic only |
| Manufacturer Series Number | H145 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 1/4 (-4) " |
| Hose O.D. | 15/32 " |
| Working Pressure | 3,045 PSI |
| Burst Pressure | 12,180 PSI |
| Fitting Series | Z Series |
| Bend Radius | 2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Neoprene |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 40.0 lb |
