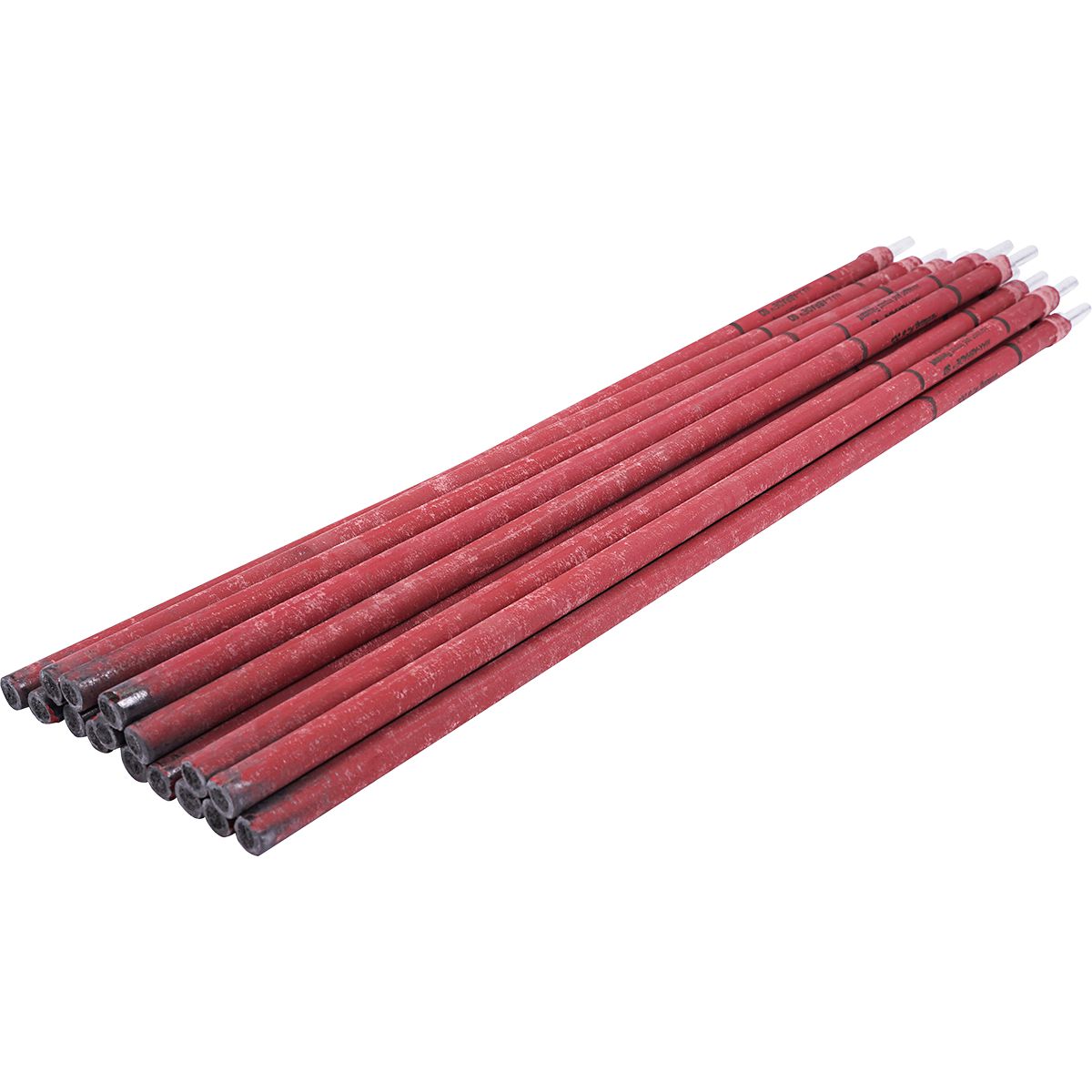

176 Extreme Abrasion With Impact 3/8X18IN
(Pack of
5.0)
A hardfacing alloy using elements traditionally found in superalloys. These alloys form complex carbides that exhibit excellent wear and moderate impact resistance. This combination coupled with special stabilizers make it ideal for hardfacing.
• Improved Alloy, 64 Rc – Lasts longer than other hardfacing by up to ten times
• 96% Deposition Efficiency – Almost twice as much metal deposited as a regular electrode
• All Position – 1/4" diameter provides all-position welding, even vertical up
• Operates at Lower Amperages – Reduces base metal dilution to produce longer wearing deposits
• 1/4" can be used on bucket lips as thin as 3/16'' thick
• Designed to withstand abrasion up to 1000ËšF/538ËšC with good shock and impact resistance
• For use on carbon and abrasion resistant alloy steels including overlaying manganese steels
• Cross-checks readily
• Hardness: 62-64 Rc
• Max Number of Passes: 2
• Current: DC or AC
• Abrasion Resistance: Excellent, 25 times greater than mild steel
• ASTM G65 Abrasion Test: 019.7mm³ vol. loss
Frequently Bought Together
777 Austenitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/2X18IN
Couldn't load pickup availability
281 Martensitic Stick Rod Electrode 5/32"
Couldn't load pickup availability
675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 5/32"
Couldn't load pickup availability
7350 Carbide Hard Facing Stick Rod Electrode 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Solid Solder 1/32"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Replacement Flint
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 1/16"
Couldn't load pickup availability
Product Description
A hardfacing alloy using elements traditionally found in superalloys. These alloys form complex carbides that exhibit excellent wear and moderate impact resistance. This combination coupled with special stabilizers make it ideal for hardfacing.• Improved Alloy, 64 Rc – Lasts longer than other hardfacing by up to ten times
• 96% Deposition Efficiency – Almost twice as much metal deposited as a regular electrode
• All Position – 1/4" diameter provides all-position welding, even vertical up
• Operates at Lower Amperages – Reduces base metal dilution to produce longer wearing deposits
• 1/4" can be used on bucket lips as thin as 3/16'' thick
• Designed to withstand abrasion up to 1000ËšF/538ËšC with good shock and impact resistance
• For use on carbon and abrasion resistant alloy steels including overlaying manganese steels
• Cross-checks readily
• Hardness: 62-64 Rc
• Max Number of Passes: 2
• Current: DC or AC
• Abrasion Resistance: Excellent, 25 times greater than mild steel
• ASTM G65 Abrasion Test: 019.7mm³ vol. loss
Technical Specifications
| Item#: | EG17610375 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 3/8 " |
| Base Metal | Steel To Steel |
| Hardness | 62-64 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.385 lb |
