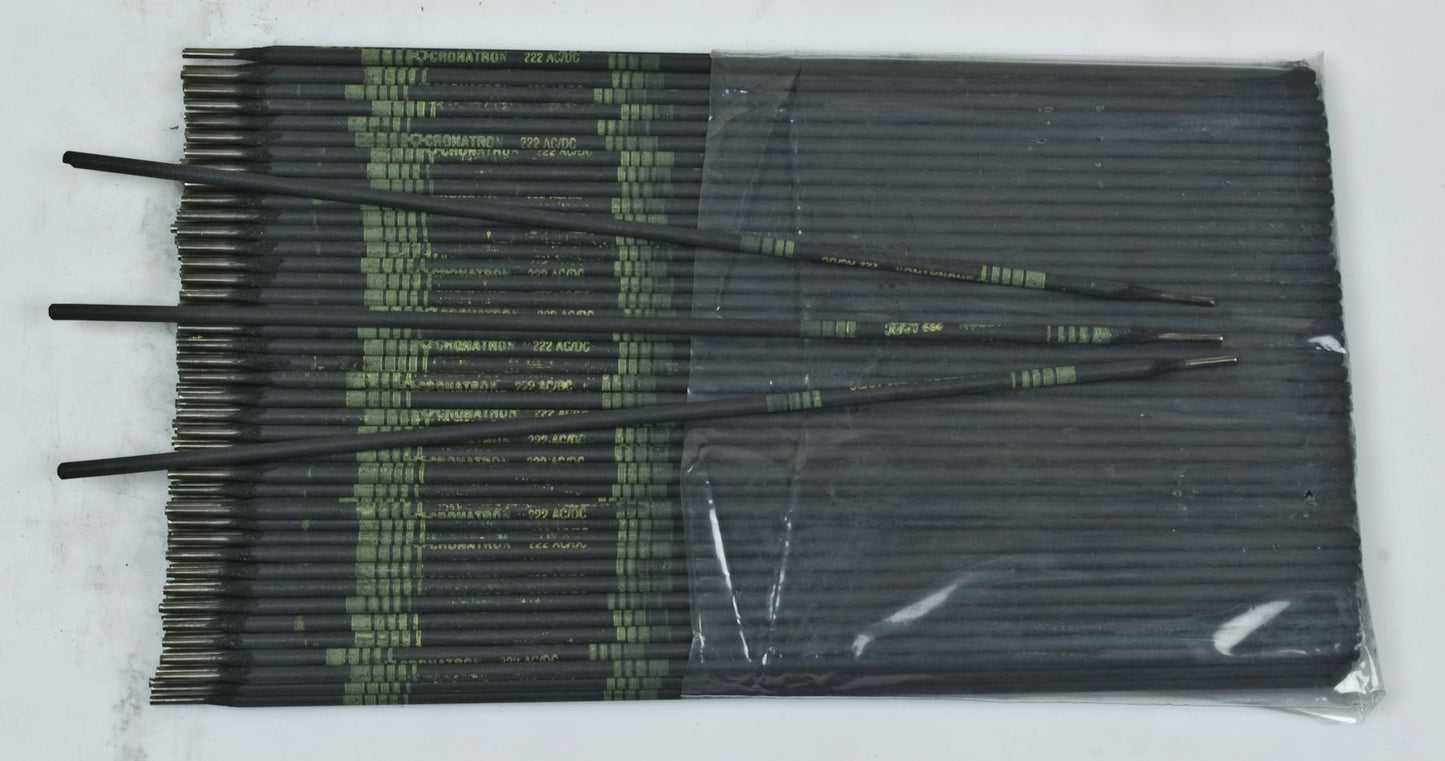

222 Cast Iron Stick Rod Electrode, Flux Coated, 170 to 220 HB Hardness, 40 to 75 Amps, DCRP/DCSP/AC Polarity, 3/32"
(Pack of 5)

SKU:CW1861 Item#: CW1861

Cronatron®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Easily machinable cast iron repairs
Tensile Strength: 65,000 PSI
Hardness: 170 – 200 BHN
Polarity: AC or DC Straight or Reverse
The high nickel content in 222 provides for easy machinability.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Check Availability

Quantity

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 13-15

Frequently Bought Together

889 Cast Iron Stick Rod Electrode 1/8"

130T Machinable Cast Iron Tig Alloy 1/16X36

Item#: EG2007130T

130 Hpm Cast Iron Machinable Electrode 3/32

Item#: EG13050000

Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper

Item#: DY89310247

Locknut with Nylon Insert Grade 8 5/16-18

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Oxygen Safety Cap Heavy Duty

Round Soapstone Holder Heavy Duty

510 Aluminum Stick Rod Electrode 1/8"

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300375

345 Tool Steel TIG Wire 3/32"

X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64

Item#: EG00495602

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Easily machinable cast iron repairs
Tensile Strength: 65,000 PSI
Hardness: 170 – 200 BHN
Polarity: AC or DC Straight or Reverse
The high nickel content in 222 provides for easy machinability.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#:	CW1861
Welding Process	Stick
Type	Flux Coated
Diameter	3/32 "
Tensile Strength	65,000 PSI
Base Metal	Cast Iron
Hardness	170-220 BHN
Polarity	DCRP/DCSP/AC
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.0 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
