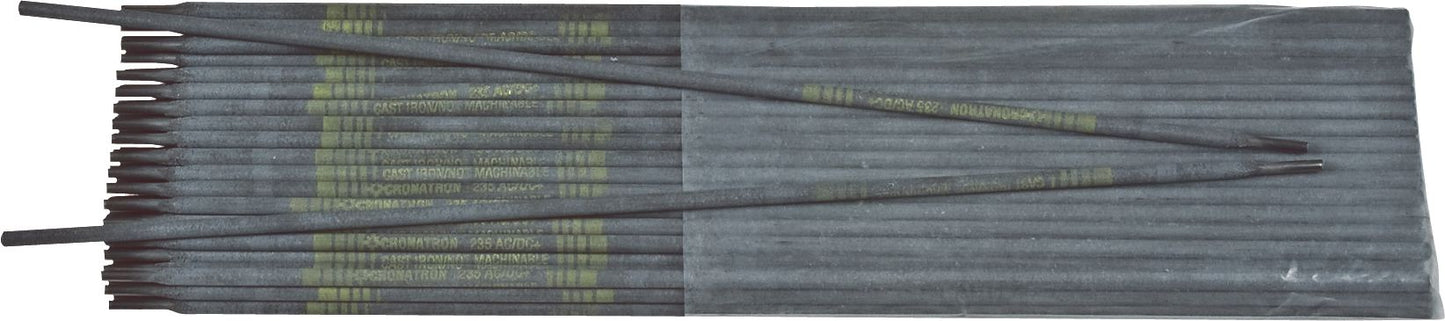

235 Cast Iron Stick Rod Electrode, Flux Coated, 80 to 120 Amps, DCSP Polarity, High Strength Welds, 1/8"
(Pack of
5)
SKU:CW1037 Item#: CW1037
All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Iron-adding
Tensile Strength: 60,000 PSIPolarity: AC or DC Reverse
235 is specifically formulated for welding on burned, rusty, corroded or otherwise contaminated cast iron parts not requiring machining.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
889 Cast Iron Stick Rod Electrode 3/16"
Couldn't load pickup availability
270 Cast Iron Stick Rod Electrode 5/32"
Couldn't load pickup availability
270 Cast Iron Stick Rod Electrode 3/32"
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability

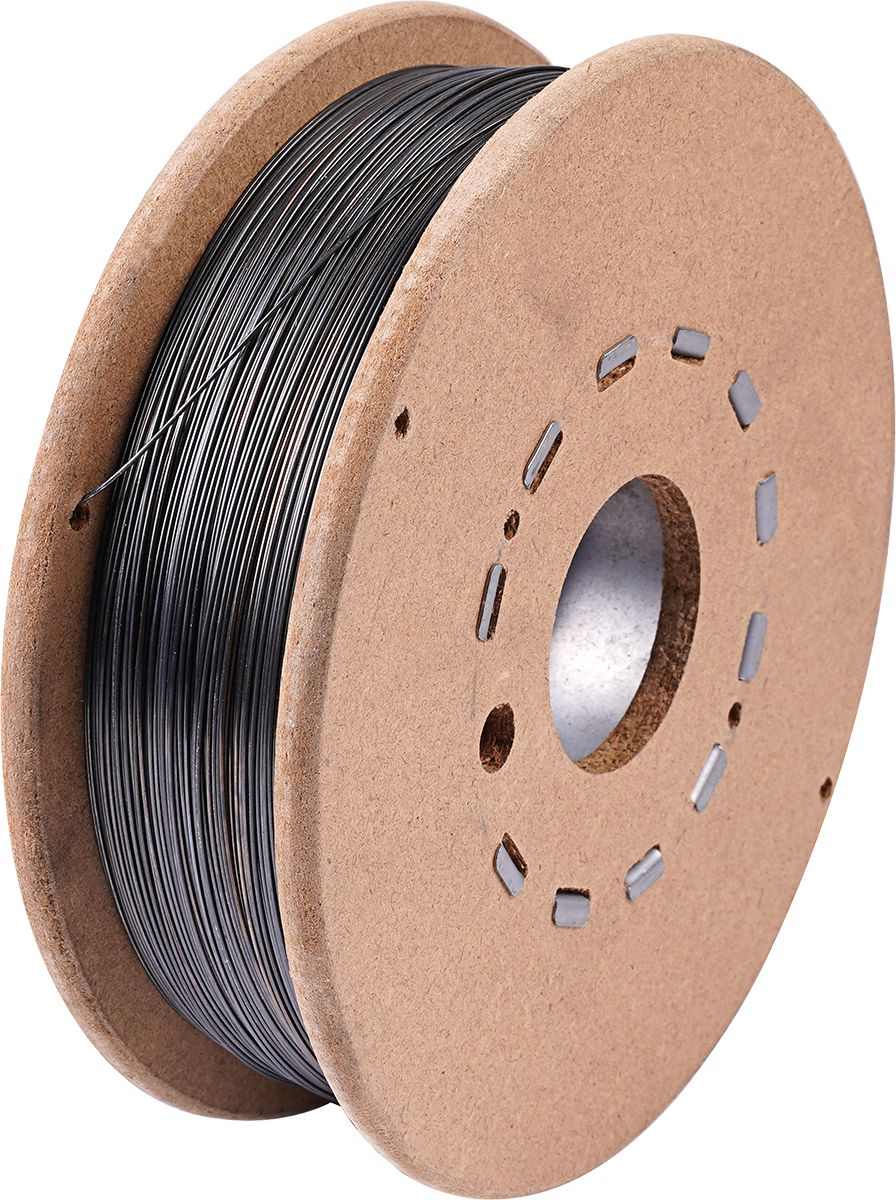

ER4043 Aluminum MIG Welding Wire 0.035"
Couldn't load pickup availability
Solid Solder 1/32"
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/8"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
All-position welding for any type of weldable cast iron repair and cast iron to steel.Superior Advantages
• High strength welds
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Iron-adding
Tensile Strength: 60,000 PSIPolarity: AC or DC Reverse
235 is specifically formulated for welding on burned, rusty, corroded or otherwise contaminated cast iron parts not requiring machining.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Technical Specifications
| Item#: | CW1037 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Tensile Strength | 60,000 PSI |
| Base Metal | Cast Iron |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.24 lb |
