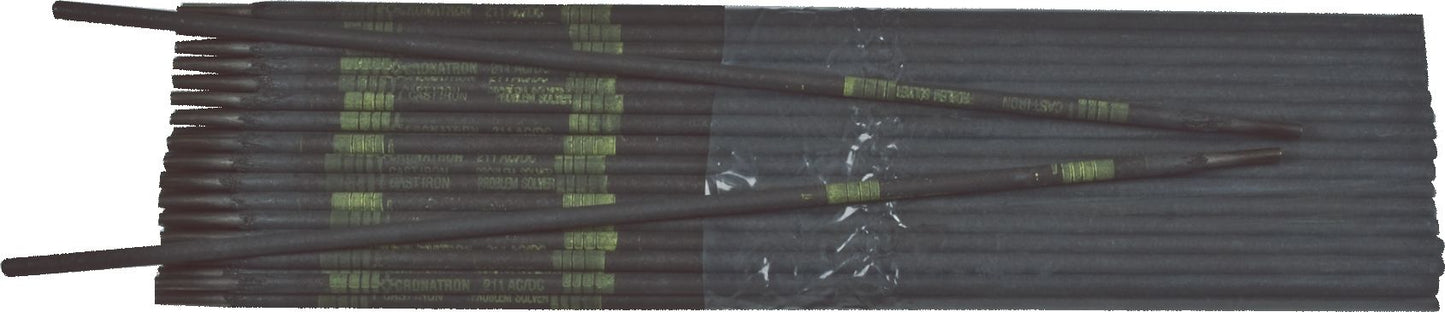

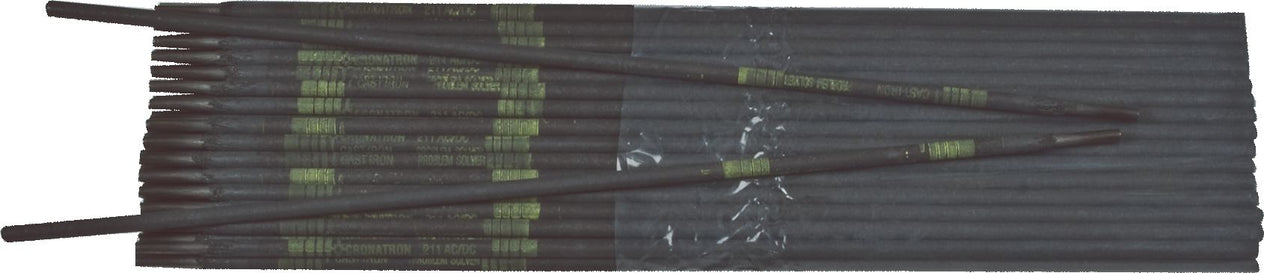

211 Cast Iron Stick Rod Electrode, Flux Coated, 185 to 240 HB Hardness, 120 to 150 Amps, DCRP/AC Polarity, 5/32"
(Pack of
5)
Achieve high-strength, precision repairs with the 211 Cast Iron Stick Rod Electrode, designed for seamless cast iron welding and cast iron-to-steel applications. With tensile strength up to 84,000 PSI and all-position welding capability, it simplifies complex repairs by eliminating the need to dismantle equipment. Its fully machinable welds and pass-over-pass efficiency save time while delivering reliable results. From cylinder blocks to manifolds, this versatile electrode is your go-to solution for restoring cracked or broken parts in pump housings, machine bases, and more. Optimize your workflow with the trusted performance of the 211 Cast Iron Welding Electrode.
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 84,000 PSIHardness: 185 – 240 BHNPolarity: AC or DC Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse AC or DC reverse polarity. Generally, where a narrow, thin bead is desired, a straight polarity application is suggested.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 13-14
Frequently Bought Together
211 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Flint Striker
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
Solid Solder 1/32"
Couldn't load pickup availability
344 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 3/32"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
Product Description
Achieve high-strength, precision repairs with the 211 Cast Iron Stick Rod Electrode, designed for seamless cast iron welding and cast iron-to-steel applications. With tensile strength up to 84,000 PSI and all-position welding capability, it simplifies complex repairs by eliminating the need to dismantle equipment. Its fully machinable welds and pass-over-pass efficiency save time while delivering reliable results. From cylinder blocks to manifolds, this versatile electrode is your go-to solution for restoring cracked or broken parts in pump housings, machine bases, and more. Optimize your workflow with the trusted performance of the 211 Cast Iron Welding Electrode.• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 84,000 PSIHardness: 185 – 240 BHNPolarity: AC or DC Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse AC or DC reverse polarity. Generally, where a narrow, thin bead is desired, a straight polarity application is suggested.
Technical Specifications
| Item#: | CW1033 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 5/32 " |
| Tensile Strength | 84,000 PSI |
| Elongation | 12-15 % |
| Base Metal | Cast Iron |
| Hardness | 185-240 BHN |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
