Home Welding Welding Alloys Cast Iron 211 Cast Iron TIG Wire 1/8"
Cast Iron

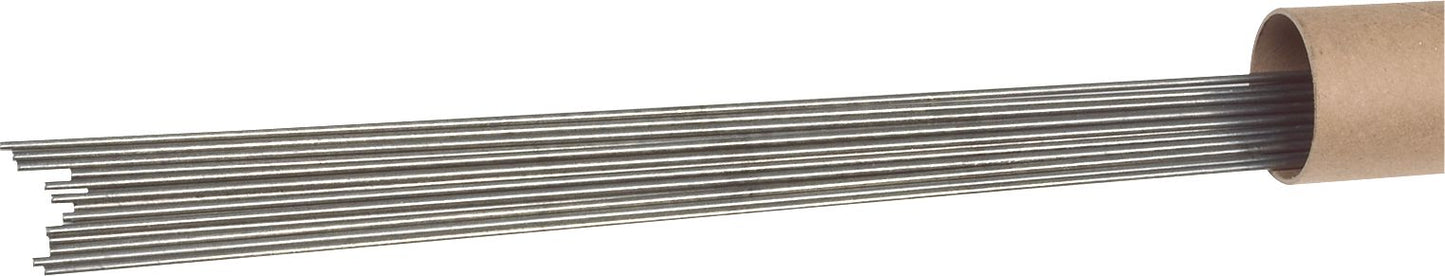

211 Cast Iron TIG Wire, Solid, 185 to 240 HB Hardness, 100% Ar Shielding Gas, DCSP Polarity, 36" Length, 1/8"
(Pack of 2)

Item#: CW1903

Cronatron®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSI
Hardness: 185 – 240 BHN
Polarity: DC Straight
Gas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.

Read More
Check Availability

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: 13-14

Frequently Bought Together


130T Machinable Cast Iron Tig Alloy 3/32X36

Item#: EG2005130T

211 Cast Iron TIG Wire 1/16"

Item#: CW1901

631 Cast-Weld Fc Alloy Wire .035X11LB

Item#: EG63140035

Utility Knife, Folding , 4" Closed

Item#: FA5474

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

510 Aluminum TIG Wire 1/8"

Item#: CW1014

E7018 Mild/Carbon Steel Stick Electrode 3/32"

Item#: 41788

X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA

Item#: EG00494502

Oxy-Therm Collet Grommet 1/4"

Item#: CW3592

Oxy-Therm Collet Nut

Item#: CW3590

Oxy-Therm System

Item#: CW3589

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSI
Hardness: 185 – 240 BHN
Polarity: DC Straight
Gas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.

Technical Specifications

Item#: CW1903
Welding Process TIG
Type Solid
Diameter 1/8 "
Length 36 "
Tensile Strength 60,000 PSI
Base Metal Cast Iron
Hardness 185-240 BHN
Shielding Gas 100% Ar
Polarity DCSP
UNSPSC #: 23271810
TAA Compliant: No
Weight: 3.0 lb
