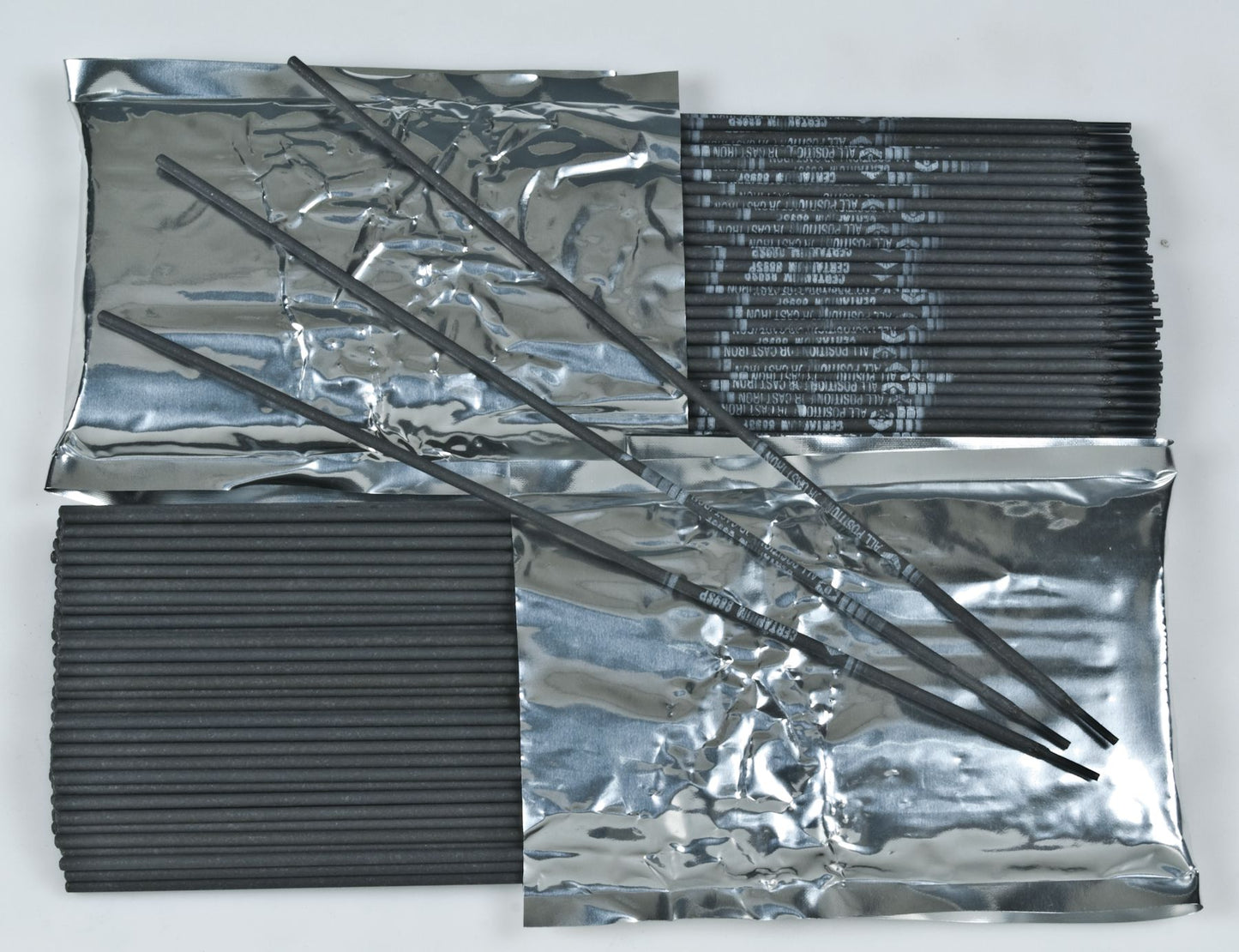

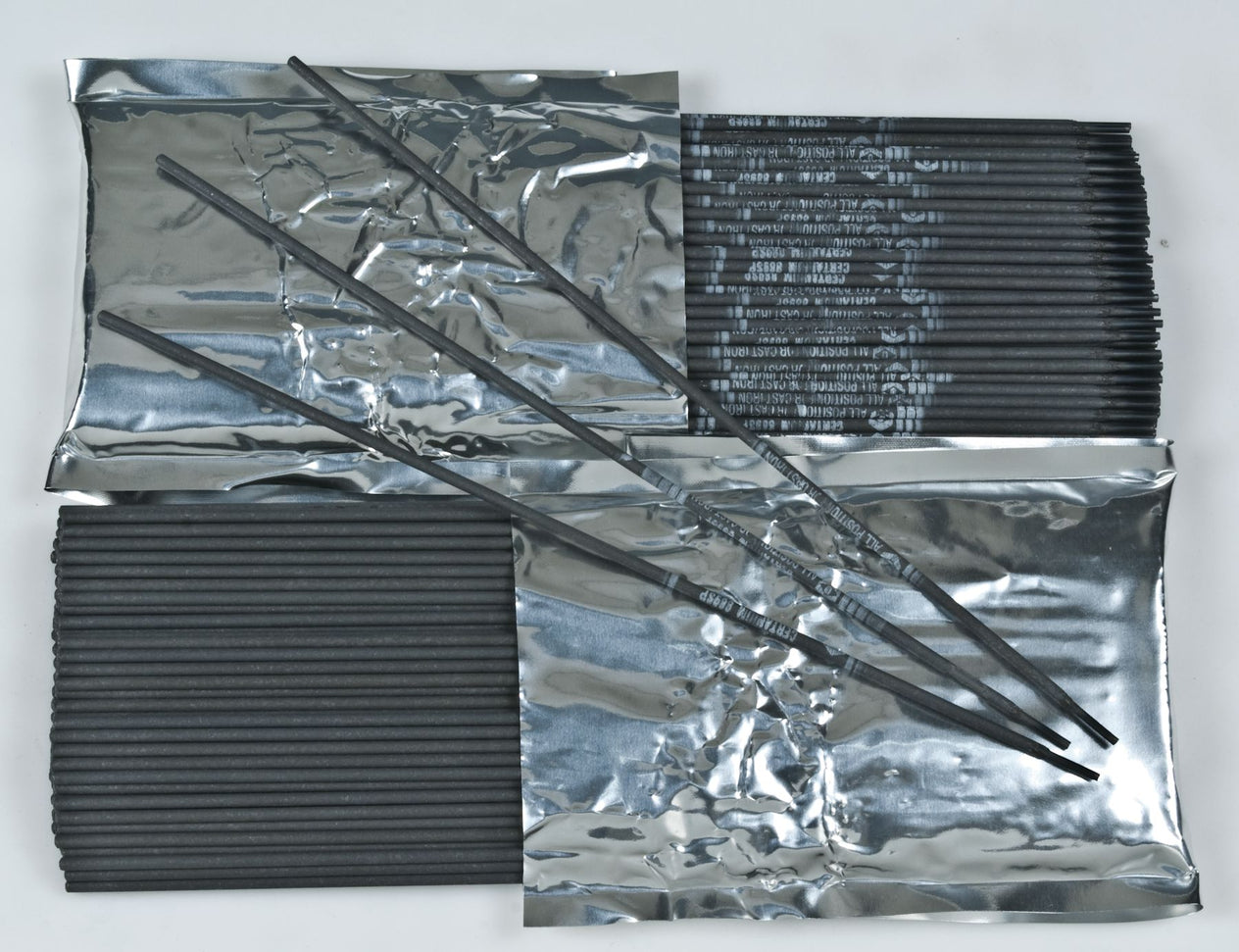

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 3/32"
(Pack of 10)

SKU:P12001 Item#: P12001

Certanium®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Check Availability

Quantity

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Frequently Bought Together

130T Machinable Cast Iron Tig Alloy 3/32X36

Item#: EG2005130T

211 Cast Iron TIG Wire 1/16"

631 Cast-Weld Fc Alloy Wire .035X11LB

Item#: EG63140035

Nylon Cable Tie 4" Black

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

USS Flat Washer Thru-Hardened Steel 5/16"

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"

750 Martensitic Hard Facing Stick Electrode 1/8"

176 Extreme Abrasion With Impact 1/4X18IN

Item#: EG17610250

E7018 Mild/Carbon Steel Stick Electrode 1/8"

331 Mild and Carbon Steel MIG Welding Wire 0.03"

345 Tool Steel TIG Wire 3/32"

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#:	P12001
Welding Process	Stick
Type	Flux Coated
Diameter	3/32 "
Tensile Strength	84,000 PSI
Base Metal	Cast Iron
Hardness	180-222 BHN
Polarity	DCRP/DCSP/AC
Ford Tox Number	019982
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	10.0 lb
