Home Welding Welding Alloys Cast Iron 889 Cast Iron Stick Rod Electrode 3/16"
Cast Iron
889 Cast Iron Stick Rod Electrode 3/16
889SP Cast Iron Stick Rod Electrode 1/8
889 Cast Iron Stick Rod Electrode 3/32
889 Cast Iron Stick Rod Electrode 3/16
889SP Cast Iron Stick Rod Electrode 1/8
889 Cast Iron Stick Rod Electrode 3/32

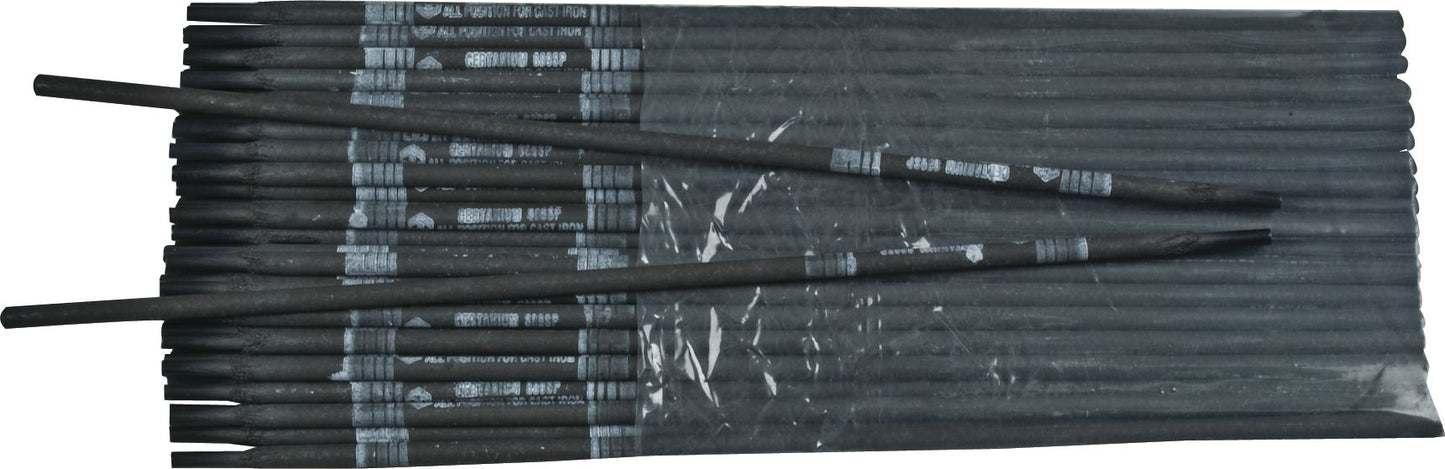

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 3/16"
(Pack of 10)

Item#: P12009

Certanium®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Read More
Check Availability

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Frequently Bought Together

270 Cast Iron Stick Rod Electrode 3/32

270 Cast Iron Stick Rod Electrode 3/32"

Item#: CW2070
270 Cast Iron Stick Rod Electrode 3/16

270 Cast Iron Stick Rod Electrode 3/16"

Item#: CW2073
130T Machinable Cast Iron Tig Alloy 3/32X36

130T Machinable Cast Iron Tig Alloy 3/32X36

Item#: EG2005130T
12

10" Auto-Adjust Pliers

Item#: DY89310302
Hex Cap Screw Grade 8, Hex Cap Screw, Grade 8, Alloy Steel, Zinc Finish, 9/16-18 x 5-1/2

Hex Cap Screw Grade 8 Alloy Steel 5/8-18 x 1-1/2"

Item#: 896
CryoBoost 5/16

CryoBoost 5/16" Dia. 1/4" Hex Shank Drill Bit

Item#: DY83612064
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728
Stepdown Butt Connector 16 to 14/12 to 10 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 16 to 14/12 to 10 AWG, Blue

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189
Superbutt Connector 22 to 18 AWG Red, Superbutt Connector, Extended Barrel, Red, 22 to 18 AWG, 1.05

Superbutt Connector 22 to 18 AWG Red

Item#: 94727
Oxy-Therm Cutting Rod 3/8 x 36

Oxy-Therm Cutting Rod 3/8 x 36"

Item#: CW3620
281 High Strength Silver Bearing Solder .031DIA 19G TUBE

281 High Strength Silver Bearing Solder .031DIA 19G TUBE

Item#: EG28172000
Oxy Acetylene Fuel Gas Three Replacement Flint, Electro-Zinc Plated

Oxy Acetylene Fuel Gas Three Replacement Flint

Item#: CW1309
333 Dissimilar Steel Stick Rod Electrode 3/32

333 Dissimilar Steel Stick Rod Electrode 3/32"

Item#: CS1049
346 Tool Steel TIG Wire 1/16

346 Tool Steel TIG Wire 1/16"

Item#: CW1892
375 Mild/Carbon Steel Stick Rod Electrode 1/8

375 Mild/Carbon Steel Stick Rod Electrode 1/8"

Item#: CW1052

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#: P12009
Welding Process Stick
Type Flux Coated
Diameter 3/16 "
Tensile Strength 84,000 PSI
Base Metal Cast Iron
Hardness 180-222 BHN
Polarity DCRP/DCSP/AC
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 10.53 lb

Product Restrictions

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
