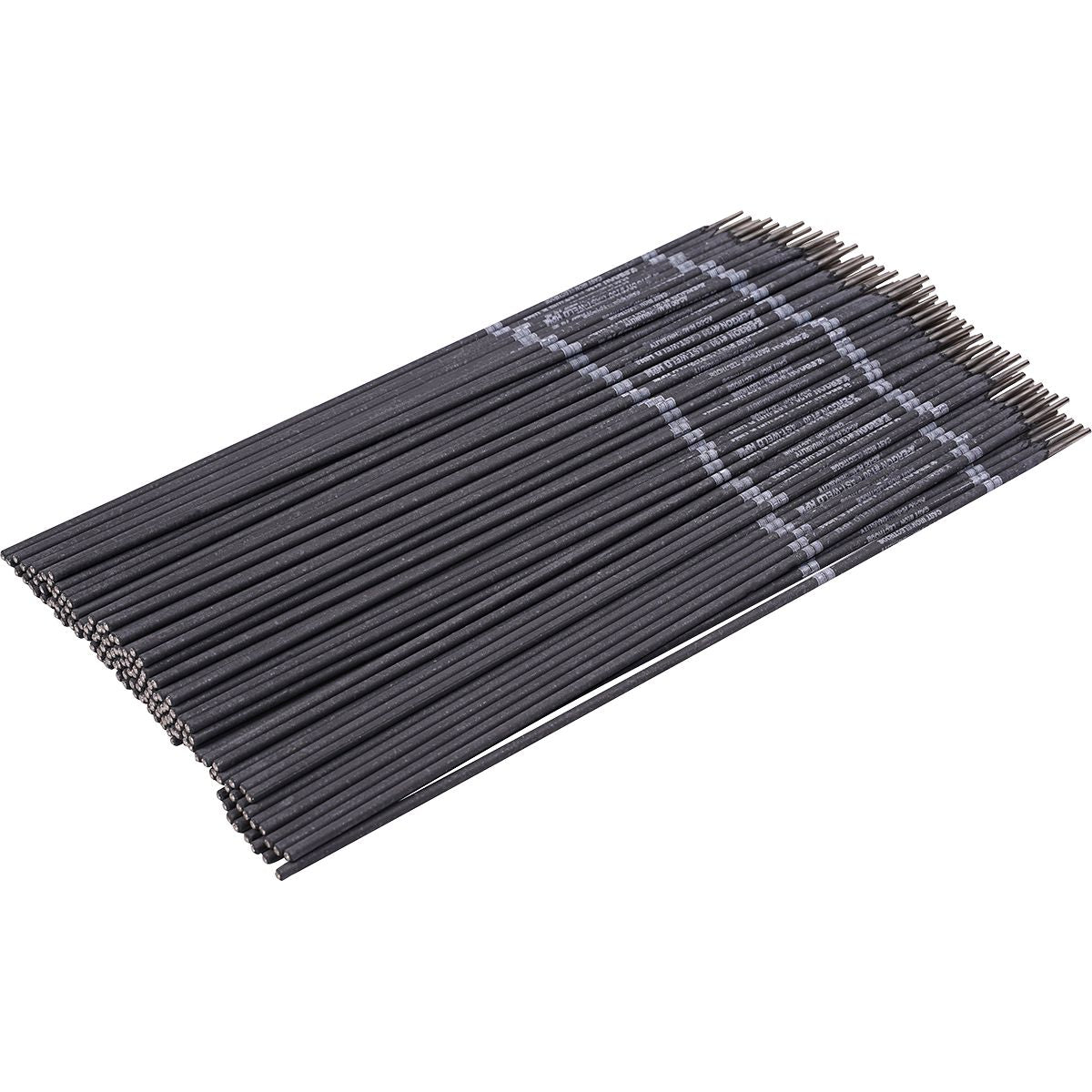

130 Cast Weld All Position Stick Electrode/Machinable/ Non-Conductive Flux/Polarity Dcep/Ac/Tensile 60000/All Position
(Pack of 5)

SKU:EG13030000 Item#: EG13030000

Lawson Products

Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC

Check Availability

Quantity

Catalog page#: LE-131

Frequently Bought Together

270 Cast Iron Stick Rod Electrode 3/16"

222 Cast Iron Stick Rod Electrode 1/8"

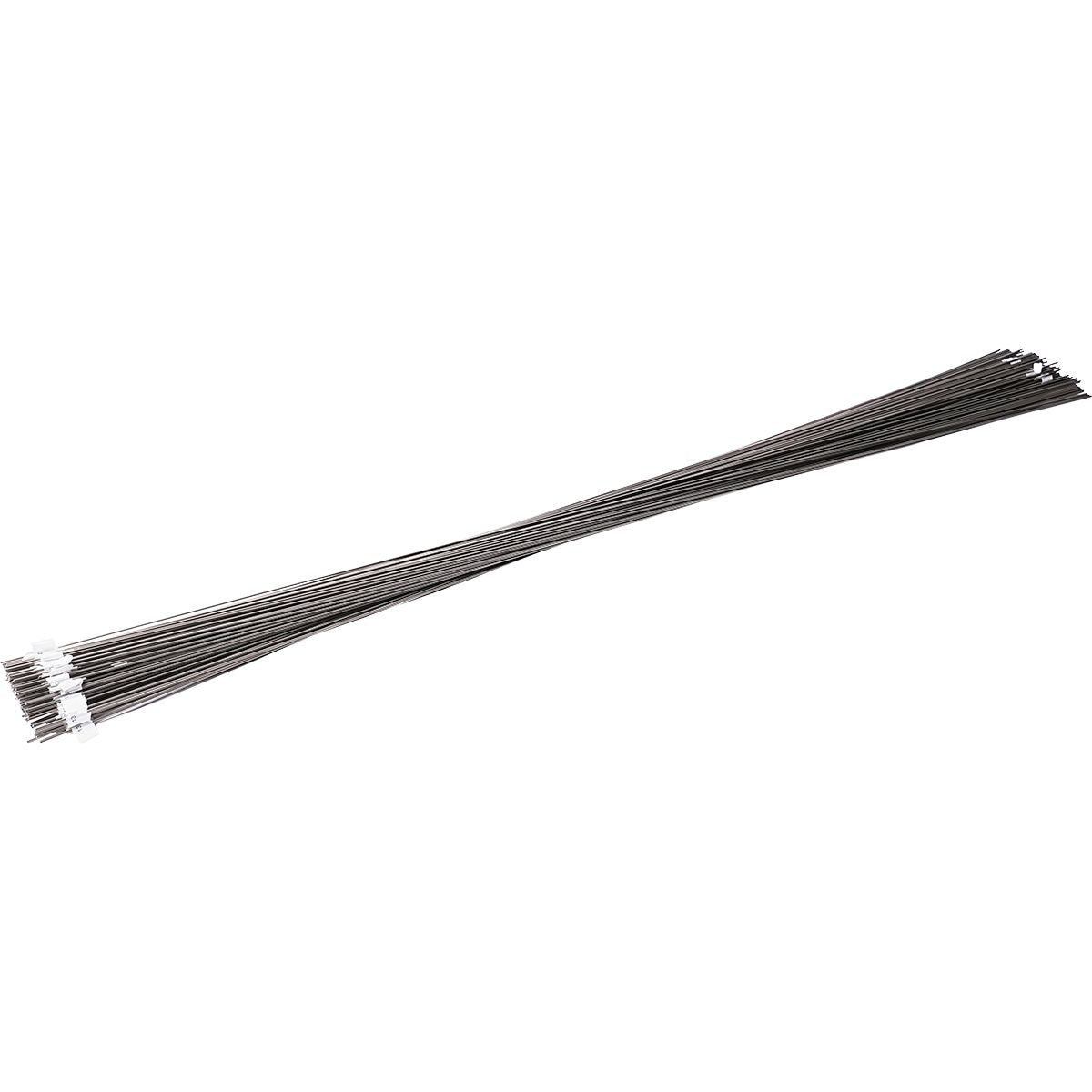

130T Machinable Cast Iron Tig Alloy 3/32X36

Item#: EG2005130T

Mini-Hole Saw Kit

9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter

Item#: DY89310354

SAE/Metric 3/8 Socket Blow Molded Case (*Empty Case Only)

Item#: DY75080223

USS Flat Washer Thru-Hardened Steel 5/16"

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"

Oxy Acetylene Fuel and Oxygen Quick Connector

333 Dissimilar Steel Stick Rod Electrode 1/8"

331 Mild and Carbon Steel MIG Welding Wire 0.035"

333 Dissimilar Steel TIG Wire 3/32"

331 Mild and Carbon Steel MIG Welding Wire 0.03"

Product Description

Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC

Technical Specifications

Item#:	EG13030000
Welding Process	Stick
Type	Stick
Diameter	5/32 "
Tensile Strength	60,000 PSI
Base Metal	Cast Iron
Hardness	80 HRB
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.99 lb
