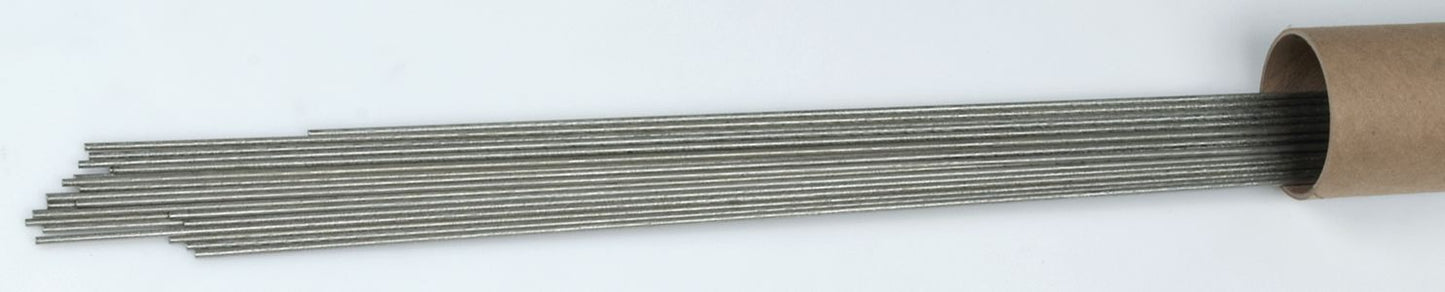

211 Cast Iron TIG Wire, Solid, 185 to 240 HB Hardness, 100% Ar Shielding Gas, DCSP Polarity, 36" Length, 3/32"
(Pack of 2)

SKU:CW1902 Item#: CW1902

Cronatron®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSIHardness: 185 – 240 BHNPolarity: DC StraightGas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.

Check Availability

Quantity

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: 13-14

Frequently Bought Together

270 Cast Iron Stick Rod Electrode 1/8"

131 Cast-Weld Special Purpose Cast Iron Electrode 3/16

Item#: EG13120000

130 Hpm Cast Iron Machinable Electrode 5/32

Item#: EG13030000

Self-Drilling Screw Hex Head #10-16 x 3/4"

Lock Washer Alloy Steel 3/8"

Flat Washer Grade 12 Thru-Hardened Steel M10

Oxy-Therm Cutting Rod 1/4 x 24"

TIG Welding Electrode 3/32"

Dissimilar Steel Stick Rod Electrode Kit

1100 Gouging and Cutting Stick Rod Electrode 3/16"

109 High Strength Electrode 1/8

Item#: EG10940000

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300375

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSIHardness: 185 – 240 BHNPolarity: DC StraightGas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.

Technical Specifications

Item#:	CW1902
Welding Process	TIG
Type	Solid
Diameter	3/32 "
Length	36 "
Tensile Strength	60,000 PSI
Base Metal	Cast Iron
Hardness	185-240 BHN
Shielding Gas	100% Ar
Polarity	DCSP
UNSPSC #:	23271810
TAA Compliant:	No
Weight:	2.3 lb
