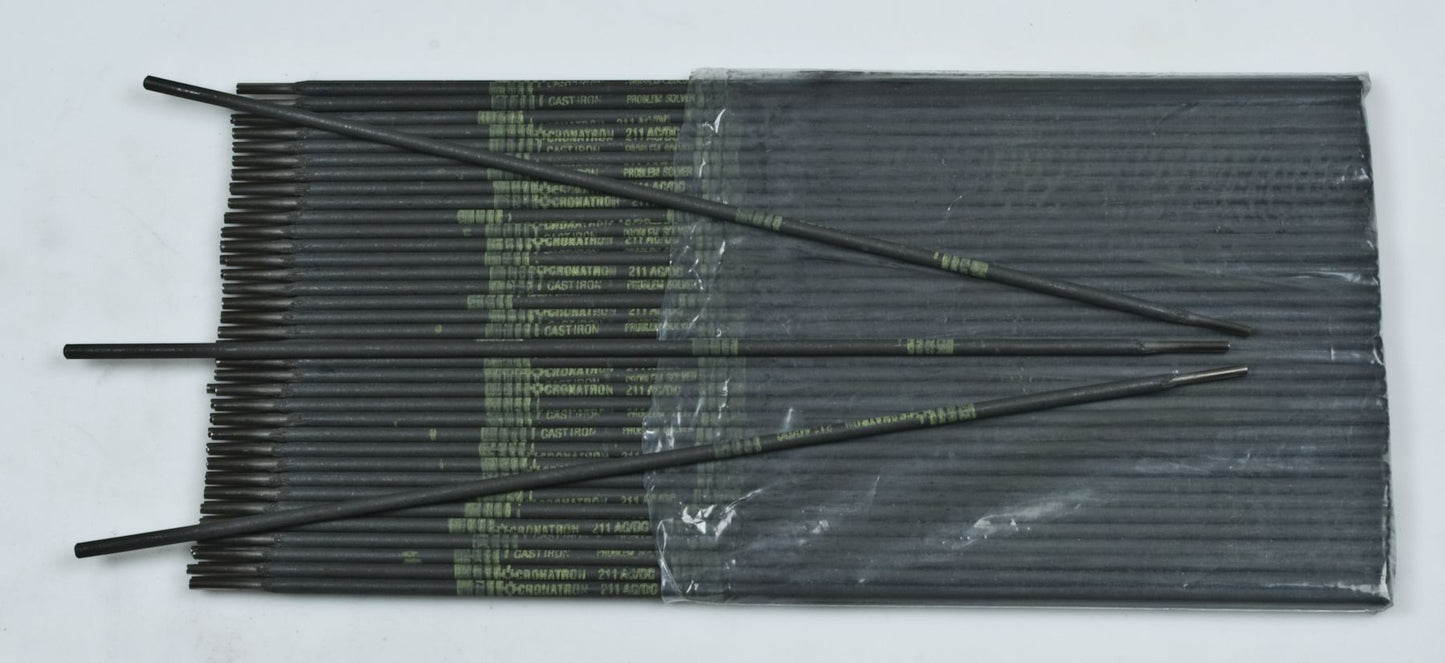

211 Cast Iron Stick Rod Electrode, Flux Coated, 185 to 240 HB Hardness, 12-15% Elongation, 75 to 110 Amps, DCRP/AC Polarity, 1/8"
(Pack of 5)

SKU:CW1034 Item#: CW1034

Cronatron®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 84,000 PSI
Hardness: 185 – 240 BHN
Polarity: AC or DC Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse AC or DC reverse polarity. Generally, where a narrow, thin bead is desired, a straight polarity application is suggested.

Check Availability

Quantity

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: 13-14

Frequently Bought Together

222 Cast Iron Stick Rod Electrode 1/8"

130T Machinable Cast Iron Tig Alloy 3/32X36

Item#: EG2005130T

211 Cast Iron TIG Wire 1/16"

USS Flat Washer Thru-Hardened Steel 5/16"

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Butt Connector 22 to 18 AWG Red

338 Mild/Carbon Steel Stick Rod Electrode 1/8"

176 Extreme Abrasion With Impact 1/4X18IN

Item#: EG17610250

E7018 Mild/Carbon Steel Stick Electrode 1/8"

331 Mild and Carbon Steel MIG Welding Wire 0.03"

321 Mild and Carbon Steel MIG Welding Wire 0.035"

333 Dissimilar Steel TIG Wire 3/32"

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 84,000 PSI
Hardness: 185 – 240 BHN
Polarity: AC or DC Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse AC or DC reverse polarity. Generally, where a narrow, thin bead is desired, a straight polarity application is suggested.

Technical Specifications

Item#:	CW1034
Welding Process	Stick
Type	Flux Coated
Diameter	1/8 "
Tensile Strength	84,000 PSI
Elongation	12-15 %
Base Metal	Cast Iron
Hardness	185-240 BHN
Polarity	DCRP/AC
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.4 lb
