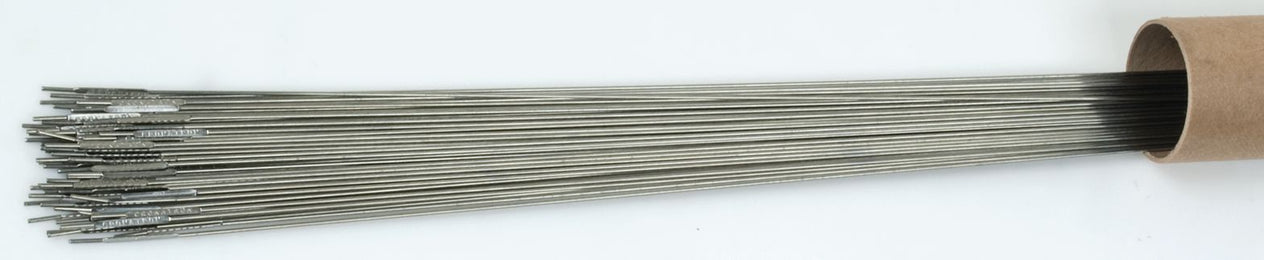

211 Cast Iron TIG Wire 1/16"
(Pack of
2.0)
All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSIHardness: 185 – 240 BHNPolarity: DC StraightGas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog Page#: 13-14
Frequently Bought Together
889 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130T Machinable Cast Iron Tig Alloy 1/16X36
Couldn't load pickup availability
130 Hpm Cast Iron Machinable Electrode 3/32
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/4-10
Couldn't load pickup availability
Welding Container Drawer 19 - Welding PPE
Couldn't load pickup availability
349 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
Product Description
All-position welding for any type of weldable cast iron repair and cast iron to steel.Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSIHardness: 185 – 240 BHNPolarity: DC StraightGas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.
Technical Specifications
| Item#: | CW1901 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/16 " |
| Length | 36 " |
| Tensile Strength | 60,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 185-240 BHN |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 2.5 lb |
