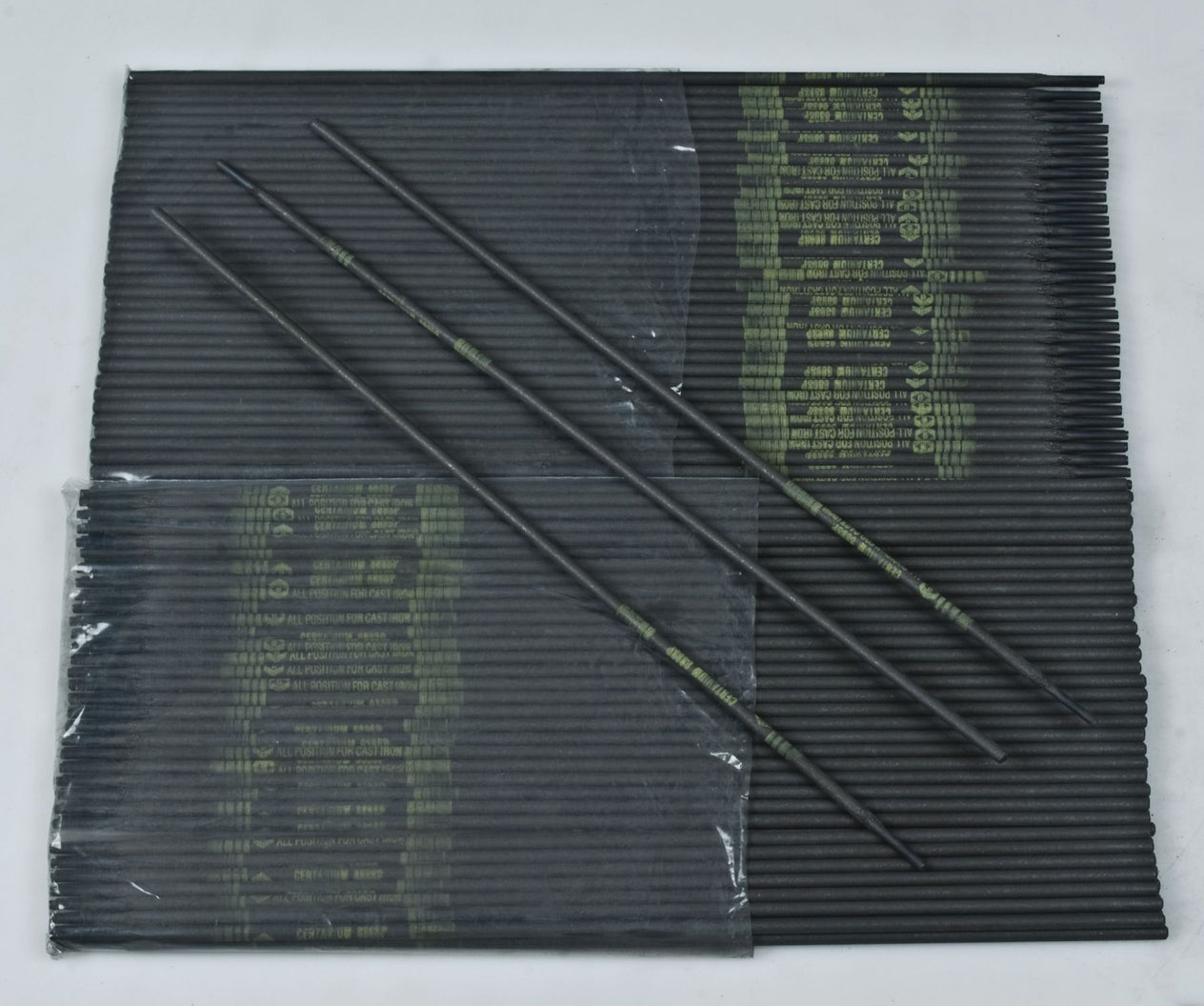

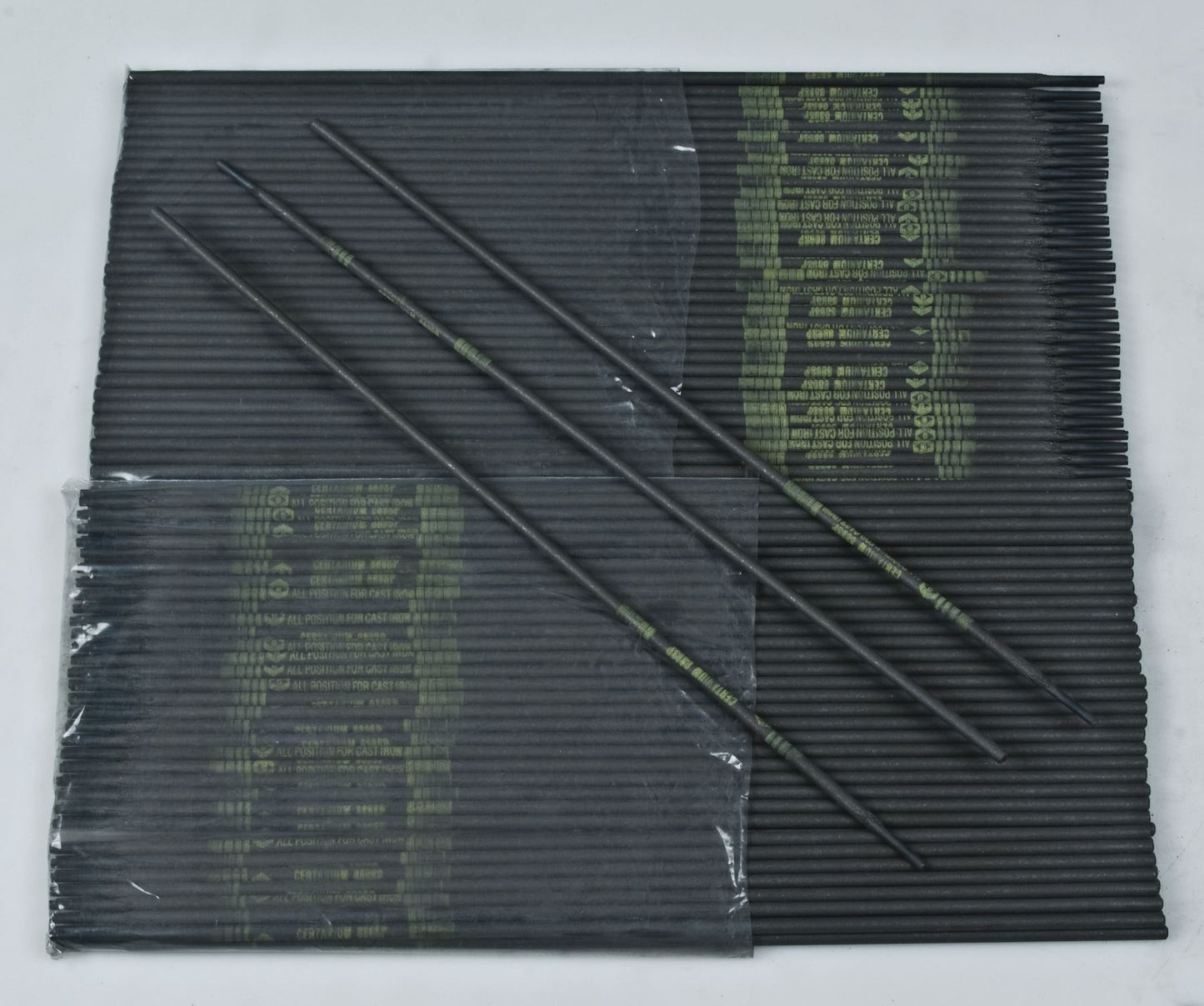

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 1/8"
(Pack of 10)

SKU:P12003 Item#: P12003

Certanium®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Check Availability

Quantity

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Frequently Bought Together

211 Cast Iron TIG Wire 1/16"

631 Cast-Weld Fc Alloy Wire .035X11LB

Item#: EG63140035

222 Cast Iron Stick Rod Electrode 3/32"

USS Flat Washer Thru-Hardened Steel 3/8"

Hex Nut Grade 5 Steel 3/8-16

Stepdown Butt Connector 16 to 14/12 to 10 AWG

331 Mild and Carbon Steel MIG Welding Wire 0.035"

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"

106 Mild Steel All Purpose Electrode

Item#: EG10694002

333 Dissimilar Steel TIG Wire 0.035"

510 Aluminum MIG Welding Wire 3/64"

777 Stainless Steel Stick Rod Electrode 1/8"

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#:	P12003
Welding Process	Stick
Type	Flux Coated
Diameter	1/8 "
Tensile Strength	84,000 PSI
Base Metal	Cast Iron
Hardness	180-222 BHN
Polarity	DCRP/DCSP/AC
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	10.47 lb
