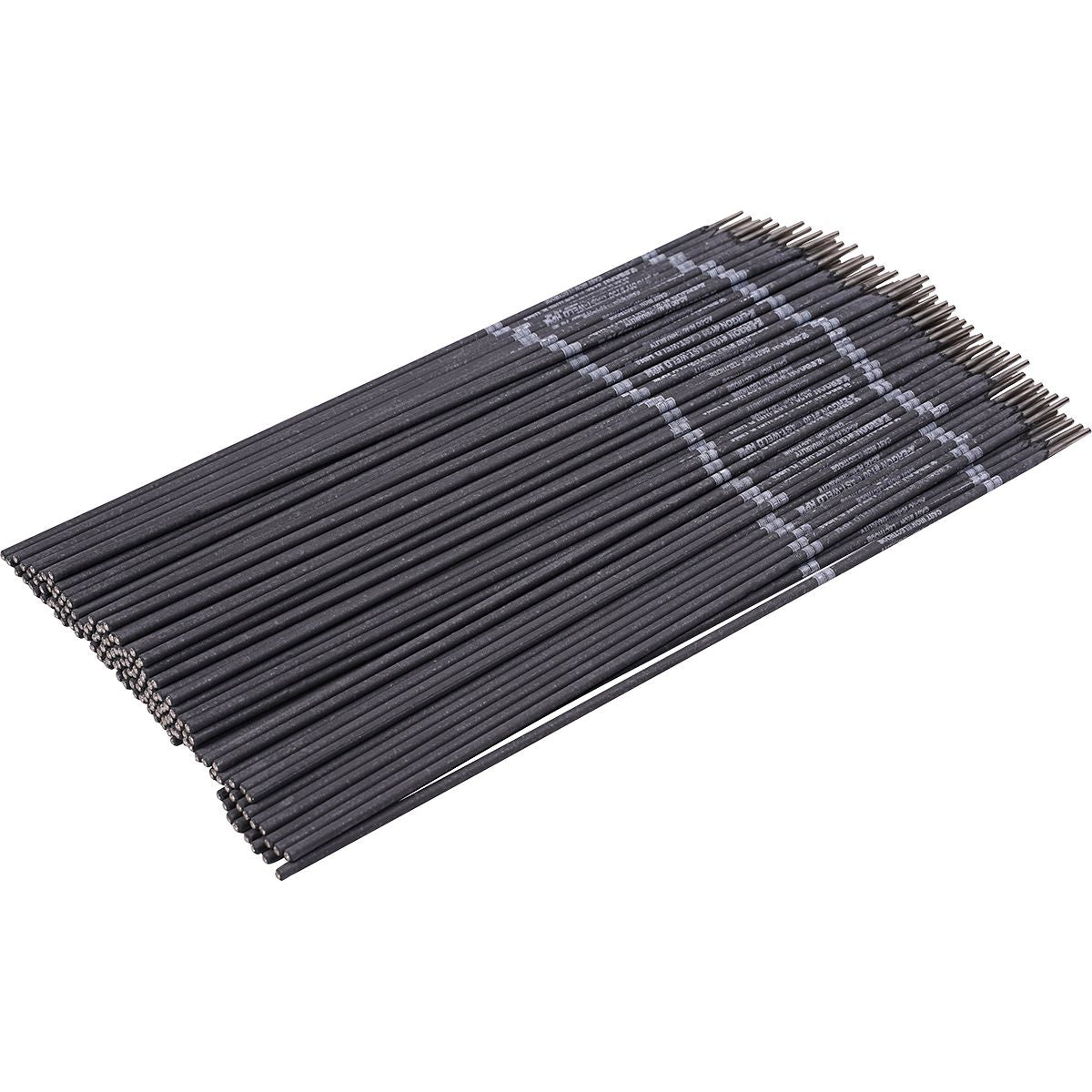

130 Cast Weld All Position Stick Electrode/Machinable/ Non-Conductive Flux/Polarity Dcep/Ac/Tensile 60000/All Position
(Pack of 5)

SKU:EG13050000 Item#: EG13050000

Lawson Products

Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC

Check Availability

Quantity

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: LE-131

Frequently Bought Together

270 Cast Iron Stick Rod Electrode 1/8"

131 Cast-Weld Special Purpose Cast Iron Electrode 3/16

Item#: EG13120000

130 Hpm Cast Iron Machinable Electrode 5/32

Item#: EG13030000

Butt Connector 22 to 18 AWG Red

Stepdown Butt Connector 22 to 18/16 to 14 AWG

SAE Flat Washer Thru-Hardened Steel 3/8"

45 Silver Bare Brazing Rod 1/8"

Rosin Core Solder 1/16"

ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"

510 Aluminum TIG Wire 1/16"

X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64

Item#: EG00495602

E6013 Mild/Carbon Steel Stick Electrode 1/8"

Product Description

Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC

Technical Specifications

Item#:	EG13050000
Welding Process	Stick
Type	Stick
Diameter	3/32 "
Tensile Strength	60,000 PSI
Base Metal	Cast Iron
Hardness	80 HRB
Polarity	DCEP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	6.07 lb
