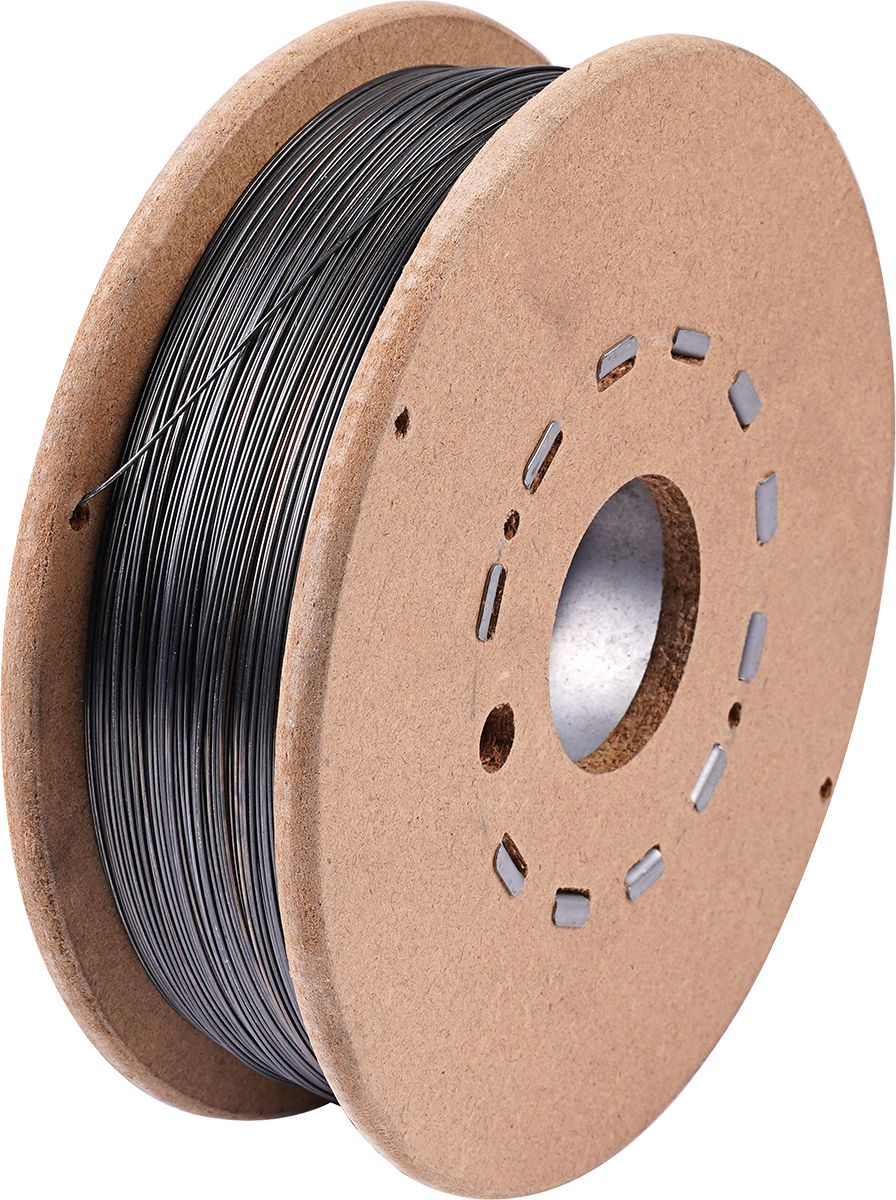

631 Cast-Weld Fc Alloy Wire .035X11LB
(Pack of
11.0)
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.
• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Frequently Bought Together
130 Hpm Cast Iron Machinable Electrode 1/8
Couldn't load pickup availability
211 Cast Iron Stick Rod Electrode 5/32"
Couldn't load pickup availability
131 Cast-Weld Special Purpose Cast Iron Electrode 1/8
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Heat Stick 850F Degrees
Couldn't load pickup availability
Flat Soapstone 1/2"
Couldn't load pickup availability
Pipe Wrap Around
Couldn't load pickup availability
9-6004 Plasma Cutting Shield Cup
Couldn't load pickup availability
177888 Plasma Cutting Deflector
Couldn't load pickup availability
20862 Plasma Cutting Electrode
Couldn't load pickup availability
Product Description
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Technical Specifications
| Item#: | EG63140035 |
|---|---|
| Welding Process | Flux-Core Arc Welding |
| Type | Flux-Cored Wire |
| Diameter | .035 " |
| Base Metal | Cast Iron |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 11.77 lb |
