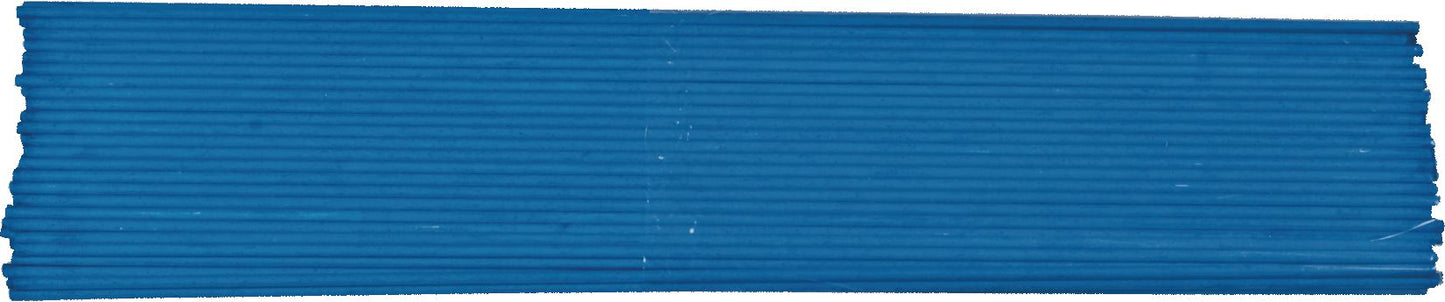

23 Flux Coated Brazing Rod, Blue, 18" Length, 1/8" Diameter, Copper and Steel
(Pack of
5)
SKU:CW1002 Item#: CW1002
A selection of brazing alloys for joining cast iron and brazing sheet metal.
Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Versatile, thin-flowing
Flux Coating Color: BlueTensile Strength: Up to 68,000 PSIBonding Temperature: 1,400°F to 1,600°F (760°C to 871°C)Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Couldn't load pickup availability
Catalog page#: 13-29
Frequently Bought Together
22 Cast Iron Bare Brazing Rod 3/16"
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
202Xl Red Flux Coated Brazing Alloy 3/16
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Flint Striker
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Single Replacement Flint
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 1/16"
Couldn't load pickup availability
Product Description
A selection of brazing alloys for joining cast iron and brazing sheet metal.Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Versatile, thin-flowing
Flux Coating Color: BlueTensile Strength: Up to 68,000 PSIBonding Temperature: 1,400°F to 1,600°F (760°C to 871°C)Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Technical Specifications
| Item#: | CW1002 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 1/8 " |
| Length | 18 " |
| Tensile Strength | 68,000 PSI |
| Melting Temperature | 1560-2000 °F |
| Color | Blue |
| Base Metal | Copper/Steel |
| Recommended Flux | F21 |
| Description | All Purpose |
| UNSPSC #: | 23271804 |
| TAA Compliant: | No |
| Weight: | 5.5 lb |
