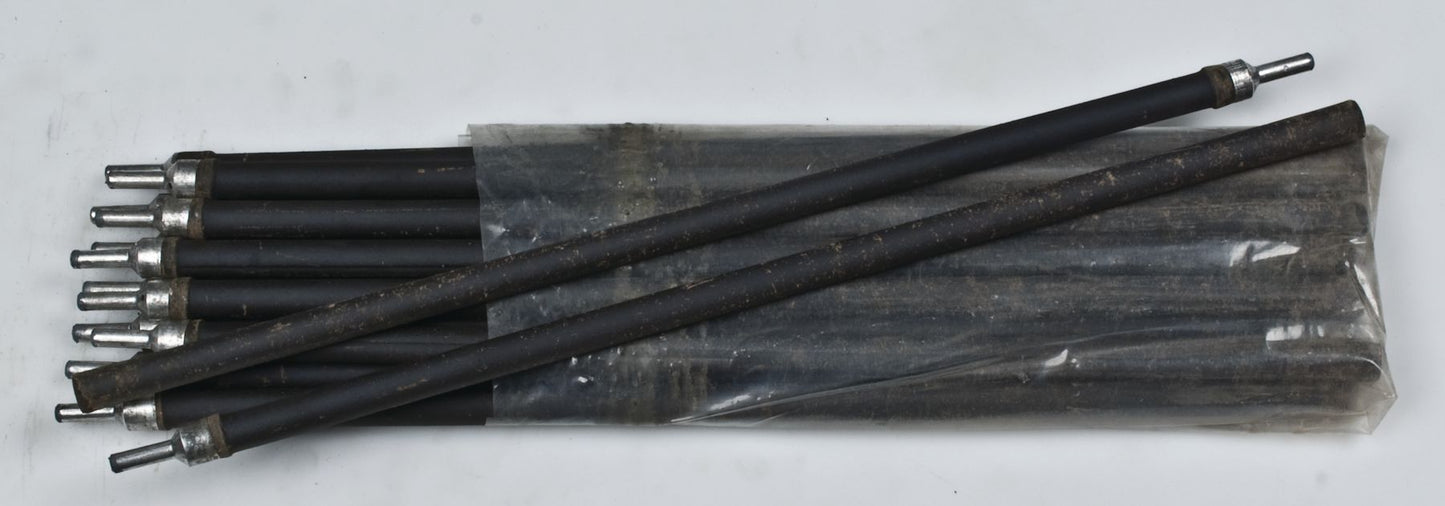

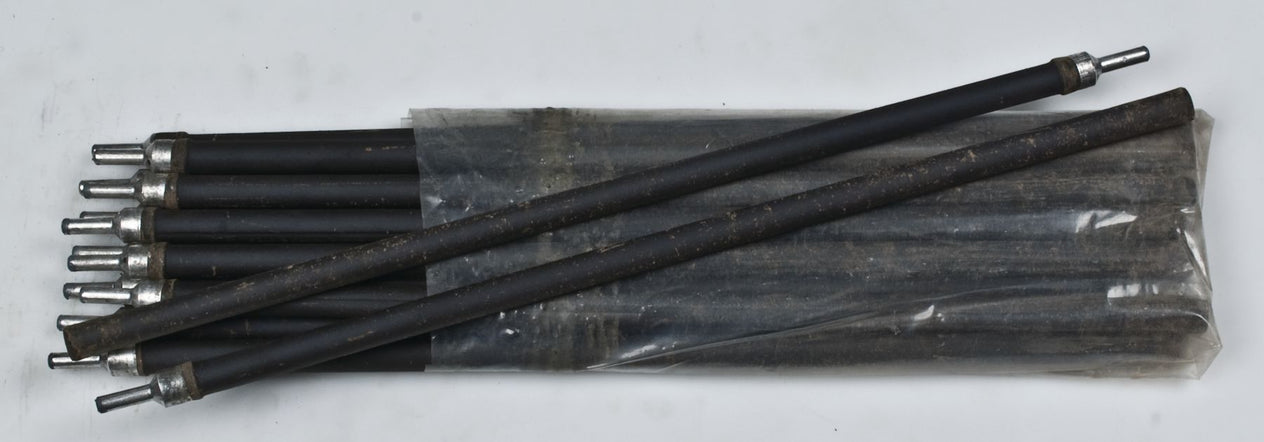

7220 Carbide Hard Facing Stick Rod Electrode 1/2"
(Pack of
10.0)
Upgrade your industrial maintenance game with the 7220 Carbide Hardfacing Stick Rod Electrode. Engineered for wear-resistant welding, this electrode is loaded with high carbide content to deliver exceptional abrasion resistance, even in the harshest conditions. Perfect for carbon and low-alloy steels, it extends the lifespan of your components, reducing the need for frequent replacements and minimizing costly downtime. Whether you're facing intense abrasion challenges or aiming to boost equipment efficiency, the 7220 electrode ensures your parts perform reliably longer.
• Maximum carbide content provides maximum abrasion resistance
• Increases the lifespan of parts
• Improves the overall efficiency of equipment by reducing downtime
Ultimate abrasion resistance on carbon and low-alloy steels
Hardness: Rc 68 (2nd pass)No. of Passes: Two maximumPolarity: AC or DC Reverse
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. The 1/4" size is recommended for small edging and best out-of-position handling.
Maximum Abrasion Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary. Not recommended for impact. Maximum of two passes is recommended.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-19
Frequently Bought Together
7350 Carbide Hard Facing Stick Rod Electrode 1/4"
Couldn't load pickup availability
H7 Carbide Hard Facing MIG Welding Wire 1/16"
Couldn't load pickup availability
7770 Hard Facing Buildup Stick Rod Electrode 3/32"
Couldn't load pickup availability
174 Gray High Abrasion Moderate Impact 3/32
Couldn't load pickup availability
7355 Carbide Hard Facing Stick Rod Electrode 3/8"
Couldn't load pickup availability
7220 Carbide Hard Facing Stick Rod Electrode 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
Upgrade your industrial maintenance game with the 7220 Carbide Hardfacing Stick Rod Electrode. Engineered for wear-resistant welding, this electrode is loaded with high carbide content to deliver exceptional abrasion resistance, even in the harshest conditions. Perfect for carbon and low-alloy steels, it extends the lifespan of your components, reducing the need for frequent replacements and minimizing costly downtime. Whether you're facing intense abrasion challenges or aiming to boost equipment efficiency, the 7220 electrode ensures your parts perform reliably longer.• Maximum carbide content provides maximum abrasion resistance
• Increases the lifespan of parts
• Improves the overall efficiency of equipment by reducing downtime
Ultimate abrasion resistance on carbon and low-alloy steels
Hardness: Rc 68 (2nd pass)No. of Passes: Two maximumPolarity: AC or DC Reverse
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. The 1/4" size is recommended for small edging and best out-of-position handling.
Maximum Abrasion Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary. Not recommended for impact. Maximum of two passes is recommended.
Technical Specifications
| Item#: | CW1848 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 1/2 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Complex Tungsten/Chrome |
| Hardness | 65-68 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.5 lb |
