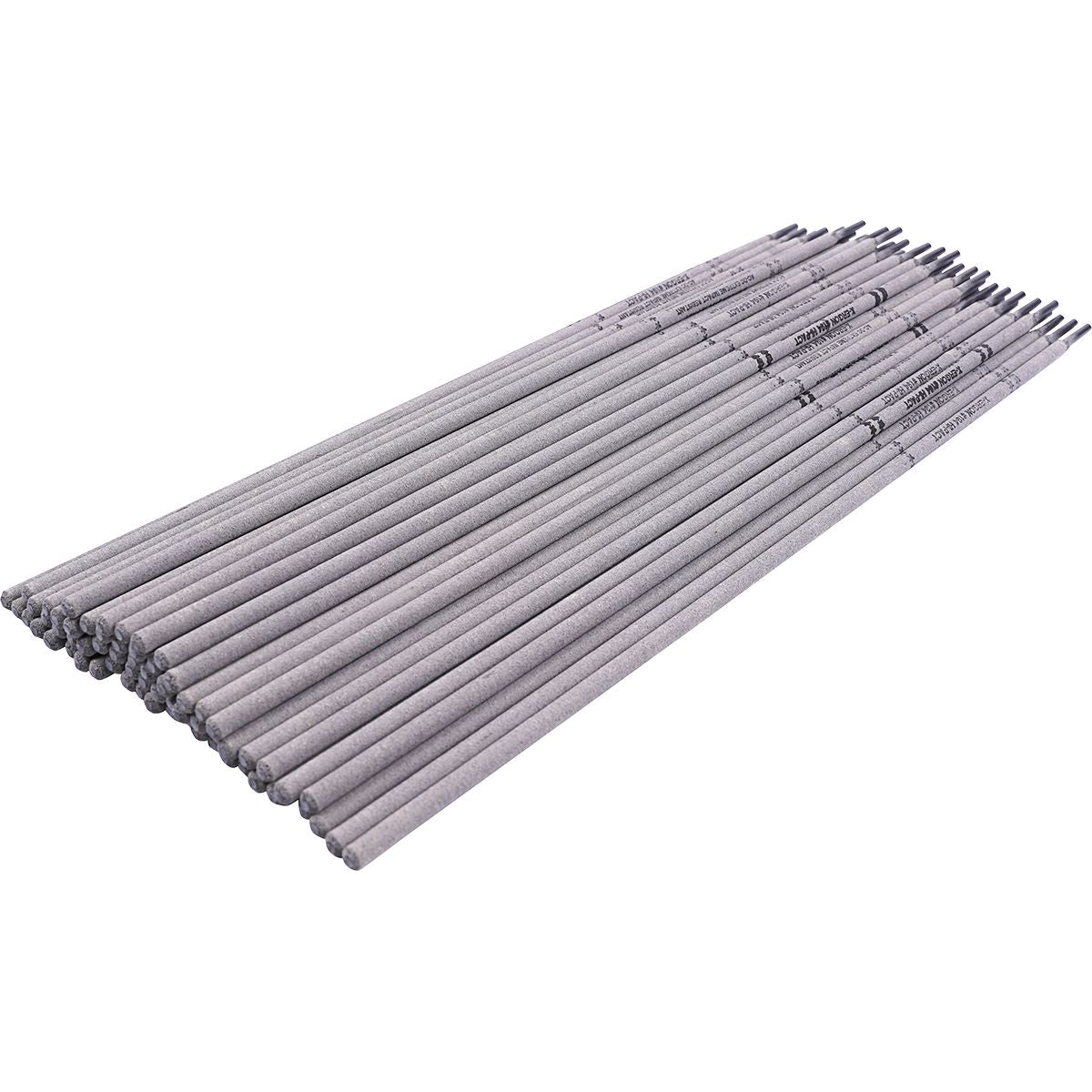

194 High Impact Manganese Steel Alloy 5/32
(Pack of
5.0)
Designed specifically for use on manganese steels. Use on carbon or low alloy steels may cause underbead cracks.
• Low Hydrogen Coating – Superior crack resistance
• Torch Cuttable – No arc gouging necessary
• Work hardens for toughness
• All-position control
• Excellent for multipass buildups
• Tensile Strength: 127,000 PSI/875 MPa
• Hardness:
– As deposited: 90 Rb
– Work Hardened: 48 Rc
• Yield Strength: 65,000 PSI/447 MPa
• Elongation: 50%
• Impact Strength (Charpy): 65 ft.-lbs. @ 0°F/-18°C
• Machinability: Good (carbide tools recommended)
• Max Number of Passes: Unlimited
• Current: DCEP (DC+) or AC
Frequently Bought Together
671 Impact And Abrasion Resistant Flux Cored Self Sheilded 1/16X25LB
Couldn't load pickup availability
7220 Carbide Hard Facing Stick Rod Electrode 3/8"
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 5/32"
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Hex Flange Bolt Grade 8 1/2-13 x 1-3/4"
Couldn't load pickup availability
Hex Cap Screw Grade 9 Alloy Steel 3/4-10 x 3-1/4"
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 3/32
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 5/32
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 3/16
Couldn't load pickup availability
Rechargeable Penlight Flashlight
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
Product Description
Designed specifically for use on manganese steels. Use on carbon or low alloy steels may cause underbead cracks.• Low Hydrogen Coating – Superior crack resistance
• Torch Cuttable – No arc gouging necessary
• Work hardens for toughness
• All-position control
• Excellent for multipass buildups
• Tensile Strength: 127,000 PSI/875 MPa
• Hardness:
– As deposited: 90 Rb
– Work Hardened: 48 Rc
• Yield Strength: 65,000 PSI/447 MPa
• Elongation: 50%
• Impact Strength (Charpy): 65 ft.-lbs. @ 0°F/-18°C
• Machinability: Good (carbide tools recommended)
• Max Number of Passes: Unlimited
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG19430000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 5/32 " |
| Base Metal | Manganese Steel |
| Hardness | 48 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.99 lb |
Product Restrictions
