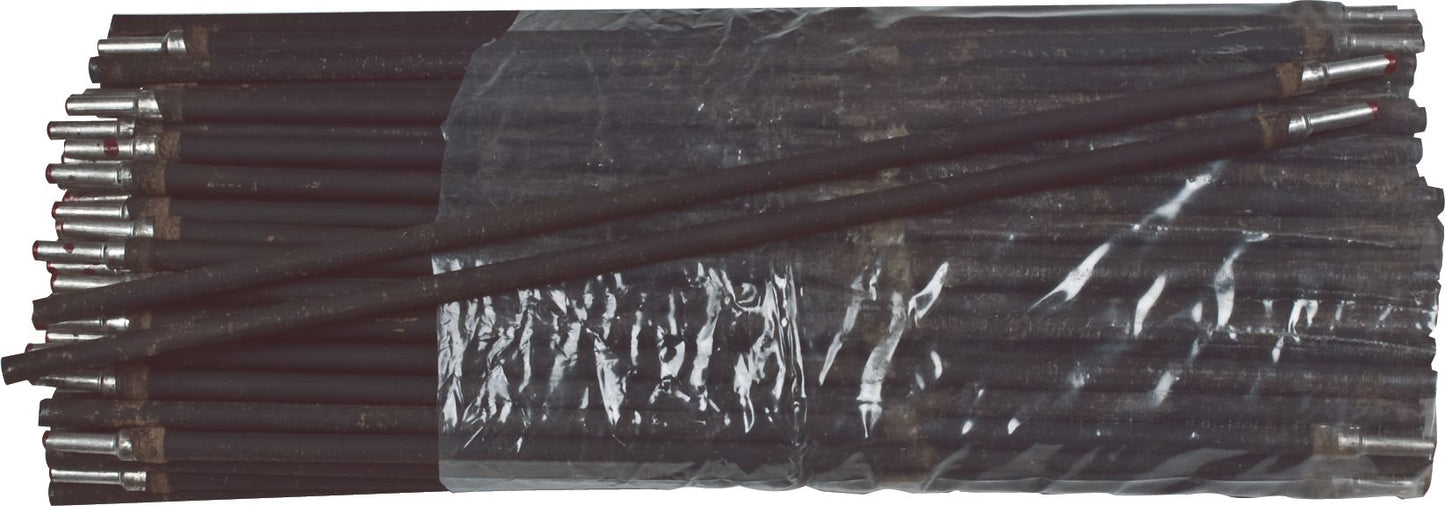

7370 Carbide Hard Facing Stick Rod Electrode, 61 to 64 HRC Hardness, 75 to 200 Amps, AC/DCRP Polarity, 18" Length, 3/8"
(Pack of
25)
Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Corrosion-resistant stabilized chrome carbide
Hardness: Rc 64 (2nd pass)Polarity: AC or DC Reverse
Not recommended for manganese steel
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding.
High Abrasion, Moderate Impact Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary.
Frequently Bought Together
172 Intermediate Abrasion And Impact Alloy 5/32X18
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 5/32"
Couldn't load pickup availability
281 Martensitic Stick Rod Electrode 1/8"
Couldn't load pickup availability
676 Flux Core Wire Extreme Abrasion Moderate Impact 1/16X33LBS
Couldn't load pickup availability
174 Gray High Abrasion Moderate Impact 3/16
Couldn't load pickup availability
H4 Carbide Hard Facing MIG Welding Wire 0.045"
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 19 AWG
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 90mm
Couldn't load pickup availability
Hex Head Bolt with 7/8" Washer Steel 5/16-18
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 24"
Couldn't load pickup availability
Product Description
Designed for high abrasion resistance in low to moderate impact situations.Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
Corrosion-resistant stabilized chrome carbide
Hardness: Rc 64 (2nd pass)Polarity: AC or DC Reverse
Not recommended for manganese steel
Typical Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding.
High Abrasion, Moderate Impact Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary.
Technical Specifications
| Item#: | CW1919 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 3/8 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Corrosion Resistant Complex |
| Hardness | 61-64 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 24.0 lb |
Product Restrictions
