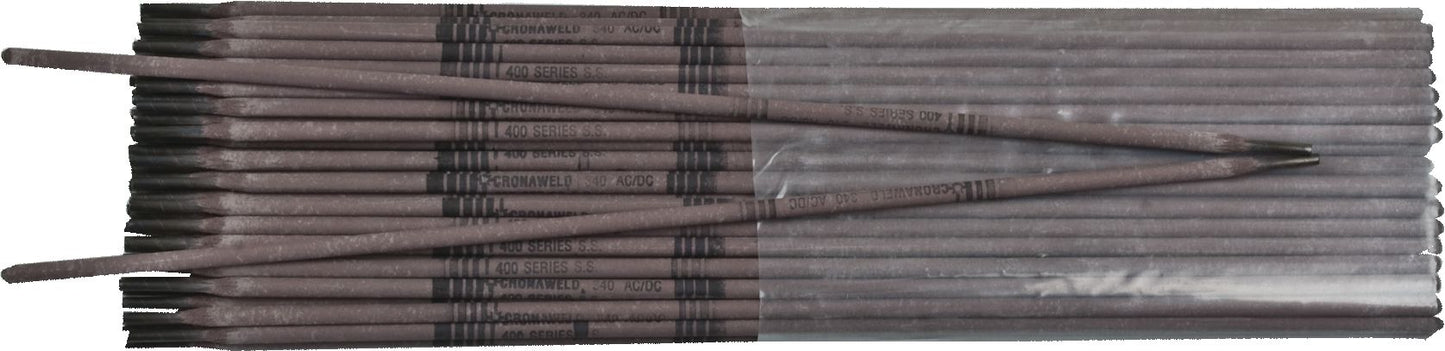

340 Chro-moly Stick Rod Electrode, Flux Coated, 40 HRC Hardness, 25% Elongation, 85 to 120 Amps, DCRP Polarity, 1/8"
(Pack of
5)
SKU:CW1029 Item#: CW1029
Specially formulated for welding the 400 Series martensitic stainless steels such as 410, 416 and 420. Primary alloying elements are chromium, nickel and molybdenum so it can also be used on chrome-moly tool steels.
Superior Advantages
• Produces smooth, dense, porosity- and crack-free weld deposits
• Resistant to moderate corrosion and heat scaling (up to 1,200°F)
• Hard with excellent machinability
• Ideally suited for high temperature applications (up to 800°F)
Tensile Strength: 140,000 PSIElongation: 25%Hardness: Rc 40Polarity: DC Reverse
Typical Applications
• Tubular frames and roll bars
• Forging dies
• Fractured tools and blades
• Shaft buildup
• Bearing surfaces
• Metal-to-metal wear
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
107 Mild Steel High Penetration Low Alloy Electrode 5/32"
Couldn't load pickup availability
340 Chro-moly Stick Rod Electrode 3/32"
Couldn't load pickup availability
663 Self Shielding Mild Steel Flux Core Mig Wire .045X10LB
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/8"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
Specially formulated for welding the 400 Series martensitic stainless steels such as 410, 416 and 420. Primary alloying elements are chromium, nickel and molybdenum so it can also be used on chrome-moly tool steels.Superior Advantages
• Produces smooth, dense, porosity- and crack-free weld deposits
• Resistant to moderate corrosion and heat scaling (up to 1,200°F)
• Hard with excellent machinability
• Ideally suited for high temperature applications (up to 800°F)
Tensile Strength: 140,000 PSIElongation: 25%Hardness: Rc 40Polarity: DC Reverse
Typical Applications
• Tubular frames and roll bars
• Forging dies
• Fractured tools and blades
• Shaft buildup
• Bearing surfaces
• Metal-to-metal wear
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1029 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Tensile Strength | 140,000 PSI |
| Elongation | 25 % |
| Base Metal | Chro-moly |
| Hardness | 40 HRC |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
