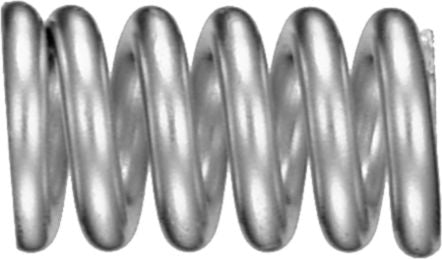

Compression Spring, Steel, 8 Wire Gauge, 1/2" ID, 13/16" OD, 1-3/8" Length, 6 Coils, 220lbs Maximum Work Load
(Pack of 2)

SKU:89613 Item#: 89613

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

Compression Spring 13/32 x 2-3/8"

Compression Spring 19/32 x 3"

Compression Spring 5/16 x 2"

Universal High-Visibility Sorbent Pad

General Purpose Duct Tape 48 mm x 55m

Valve Action® Permanent Paint Marker Red

Universal Sorbent Pad

SafetyPro 8 Mil Nitrile Glove Orange X-Large

Qwik Stik® Electrolyte Powder Mix 0 Cal Fruit Punch

USS Flat Washer Thru-Hardened Steel 1/4"

USS Flat Washer Thru-Hardened Steel 3/8"

Butt Connector 16 to 14 AWG Blue

Automotive Refinishing Tape 2" x 60 Yards

WypAll X80 ShopPro Towel 12.5 x 13.4"

Wypall L30 Wiper 16.4 x 9.8"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89613
Type	Compression Spring
O.D.	13/16 "
Length	1-3/8 "
I.D.	1/2 "
Wire Diameter	0.162 "
Wire Gauge	8
Number of Coils	6
Rate	875 lb./in.
Maximum Work Load	220 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.16 lb
