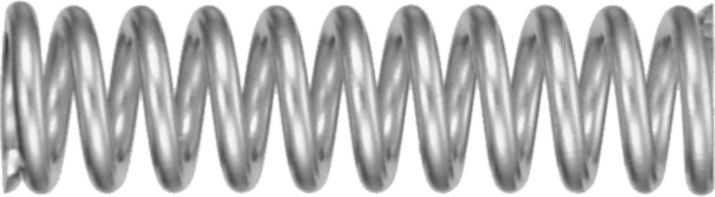

Compression Spring 13/32 x 2-3/8"
(Pack of
2.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Valve Action® Permanent Paint Marker Silver
Couldn't load pickup availability
WypAll X60 Teri Wiper 12.5 x 16.8"
Couldn't load pickup availability
Bullseye #12 Bottle with Trigger Sprayer 22fl.oz
Couldn't load pickup availability
Prem Blk Ntrl Glvs, Lrg, CS
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Citrus
Couldn't load pickup availability
Universal High-Visibility Sorbent Pad
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Premium Polypropylene Packaging Tape 2" x 55 Yards
Couldn't load pickup availability
Small Medium and Large Funnel Kit 3Pcs
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Compression Spring 3/4 x 3-1/2"
Couldn't load pickup availability
Compression Spring 17/32 x 3-3/4"
Couldn't load pickup availability
Compression Spring 5/16 x 3/4"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89602 |
|---|---|
| Type | Compression Spring |
| O.D. | 5/8 " |
| Length | 2-3/8 " |
| I.D. | 13/32 " |
| Wire Diameter | 0.105 " |
| Wire Gauge | 12 |
| Number of Coils | 11-1/2 |
| Rate | 130 lb./in. |
| Maximum Work Load | 80 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
