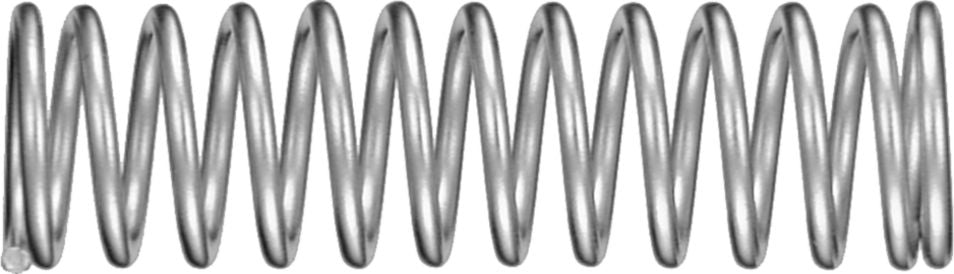

Compression Spring, Steel, 13 Wire Gauge, 11/16" ID, 7/8" OD, 3" Length, 13 Coils, 35lbs Maximum Work Load
(Pack of 2)

SKU:89609 Item#: 89609

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

Compression Spring 1/4 x 1-1/2"

Compression Spring 17/64 x 1"

Compression Spring 7/32 x 2"

WypAll X60 Teri Wiper 9.1 x 16.8"

Oil-Only Sorbent Pad

Plastic Rotary Drum Pump 20 to 55gal

Diamond Texture Premium Nitrile Gloves, Orange, 8 Mil, X-Large, 90/Box

Wypall L30 Wiper 16.4 x 9.8"

Diamond-Textured Nitrile Gloves, Orange, 6 Mil, Large, 100/Box

Hex Nut Grade 8 Alloy Steel 1/2-13

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522

Small Medium and Large Funnel Kit 3Pcs

Reclaimed Mixed Color T-Shirt Rags

Mechanic's Wire Steel 16ga

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89609
Type	Compression Spring
O.D.	7/8 "
Length	3 "
I.D.	11/16 "
Wire Diameter	0.092 "
Wire Gauge	13
Number of Coils	13
Rate	19 lb./in.
Maximum Work Load	35 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.12 lb
