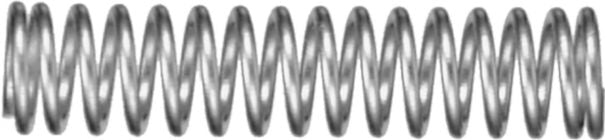

Home Facility/Site Compression Spring 5/16 x 2"
Facility/Site

Compression Spring, Steel, 17 Wire Gauge, 5/16" ID, 7/16" OD, 2" Length, 16 Coils, 17lbs Maximum Work Load
(Pack of 5)

Item#: 89579

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Read More
Check Availability

Catalog page#: 16-36, 16-37

Frequently Bought Together


Valve Action® Permanent Paint Marker Yellow

Item#: 99062

Ear Plug Dispenser

Item#: A1X94

Universal High-Visibility Sorbent Pad

Item#: 1566093

Universal Sorbent Pad

Item#: SF10327

Lawson Camo Baseball Hat

Item#: 1693719

TigerGrip 8 Mil Nitrile Glove Orange X-Large

Item#: 1677891

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445

High Solids Paints Gloss Black

Item#: 1509224

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

Automotive Refinishing Tape 2" x 60 Yards

Item#: 50117

Valve Action® Permanent Paint Marker Red

Item#: CW4891

WypAll X80 ShopPro Towel 12.5 x 13.4"

Item#: 29372

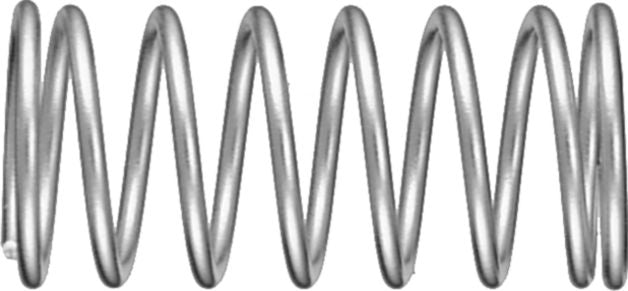

Compression Spring 3/4 x 2"

Item#: 89617

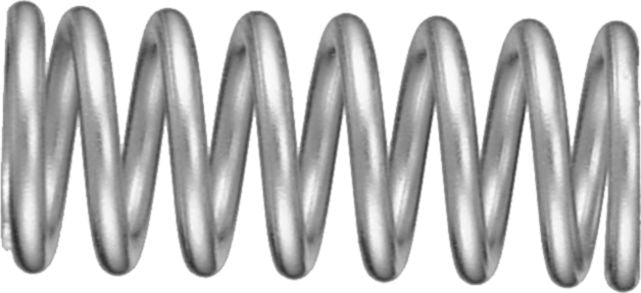

Compression Spring 5/8 x 2"

Item#: 89618

Extension Spring 7/8 x 6"

Item#: 89662

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#: 89579
Type Compression Spring
O.D. 7/16 "
Length 2 "
I.D. 5/16 "
Wire Diameter 0.054 "
Wire Gauge 17
Number of Coils 16
Rate 15.1 lb./in.
Maximum Work Load 17 lb
Material Steel
UNSPSC #: 31161904
TAA Compliant: Yes
Weight: 0.09 lb
