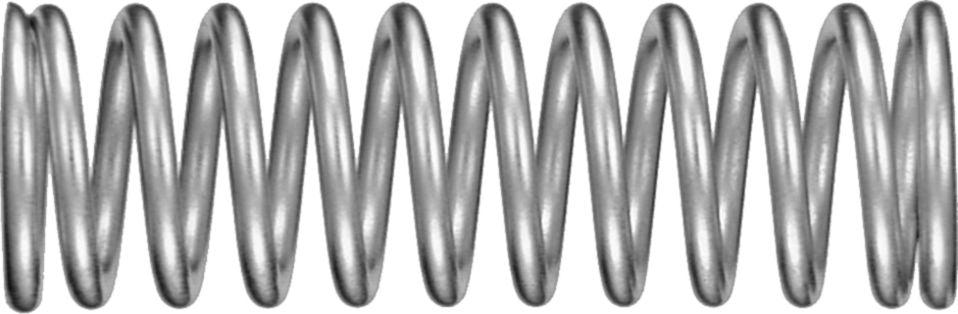

Compression Spring, Steel, 11 Wire Gauge, 3/4" ID, 1" OD, 3" Length, 11-1/2 Coils, 70lbs Maximum Work Load
(Pack of
2)
SKU:89611 Item#: 89611
The most common spring type
Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
Frequently Bought Together
Valve Action® Permanent Paint Marker Black
Couldn't load pickup availability
Auto-Darkening Panoramic View Welding Helmet
Couldn't load pickup availability
Round Tag Brass 1-1/2"
Couldn't load pickup availability
Sqweeze® Hydration Freeze Pops
Couldn't load pickup availability
Laser Lite Ear Plugs
Couldn't load pickup availability
LCT Lens Cleaning Towelettes
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
WypAll X60 Teri Wiper 12.5 x 13.4"
Couldn't load pickup availability
WypAll X80 ShopPro Towel 9.1 x 16.8"
Couldn't load pickup availability
Bullseye #12 Bottle with Trigger Sprayer 22fl.oz
Couldn't load pickup availability
Extension Spring 7/16 x 4-1/2"
Couldn't load pickup availability
Compression Spring 1/4 x 1-1/2"
Couldn't load pickup availability
Compression Spring 5/16 x 1-1/2"
Couldn't load pickup availability
Product Description
The most common spring type Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89611 |
|---|---|
| Type | Compression Spring |
| O.D. | 1 " |
| Length | 3 " |
| I.D. | 3/4 " |
| Wire Diameter | 0.120 " |
| Wire Gauge | 11 |
| Number of Coils | 11-1/2 |
| Rate | 45.6 lb./in. |
| Maximum Work Load | 70 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.26 lb |
