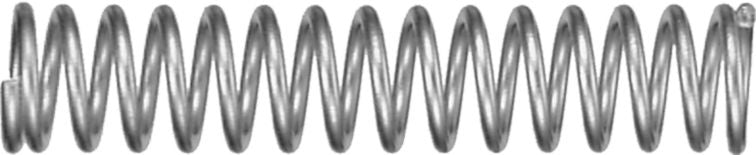

Compression Spring, Steel, 16 Wire Gauge, 3/8" ID, 1/2" OD, 2-1/2" Length, 16 Coils, 20lbs Maximum Work Load
(Pack of 5)

SKU:89587 Item#: 89587

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-37

Frequently Bought Together

Compression Spring 9/16 x 3-1/2"

Compression Spring 3/8 x 2-3/4"

Compression Spring 1/2 x 1-3/8"

Round Tag Brass 1-1/2"

Universal Sorbent Pad

Universal Three-Ply Heavyweight Sorbent Pads

Premium Nitrile Gloves, Orange, 6 Mil, Large, 100/Box

BK1 Bearkat Safety Glasses

LCT Lens Cleaning Towelettes

Vision Pro Super

Item#: DY21061040

Flat Washer Grade 12 Thru-Hardened Steel M8

IFI 100/107 Top Locknut Grade C 5/8-11

Bullseye #48 Trigger Sprayer with 32oz Bottle

Friction Tape 3/4" x 60'

Valve Action® Permanent Paint Marker Green

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89587
Type	Compression Spring
O.D.	1/2 "
Length	2-1/2 "
I.D.	3/8 "
Wire Diameter	0.063 "
Wire Gauge	16
Number of Coils	16
Rate	18.2 lb./in.
Maximum Work Load	20 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.1 lb
