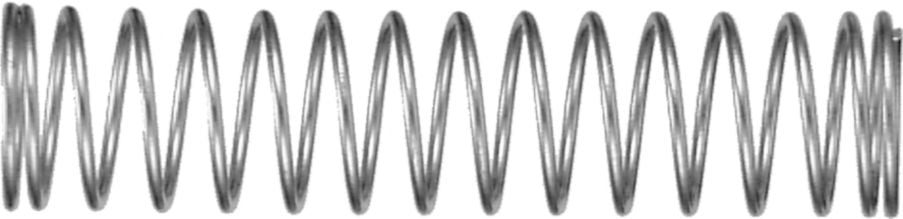

Compression Spring, Steel, 18 Wire Gauge, 19/32" ID, 11/16" OD, 3" Length, 16 Coils, 7lbs Maximum Work Load
(Pack of 5)

SKU:89581 Item#: 89581

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-37

Frequently Bought Together

Wypall L30 Wiper 16.4 x 9.8"

WypAll X60 Teri Wiper 12.5 x 13.4"

10 Person - Lawson - First Aid Kit - Plastic - ANSI 2021 Class A

Premium Nitrile Gloves, Black, 6 Mil, X-Large, Case

Valve Action® Permanent Paint Marker Yellow

SafetyPro 8 Mil Nitrile Glove Orange Large

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

IFI 100/107 Top Locknut Grade C 5/8-11

USS Flat Washer Thru-Hardened Steel 1/4"

Friction Tape 3/4" x 60'

Blue GT Series Extra Heavy Duty Wiper Roll

Bullseye #48 Trigger Sprayer with 32oz Bottle

Compression Spring 13/32 x 2-3/8"

Compression and Extension Spring Kit 322Pcs

Compression Spring 1/4 x 1-3/8"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89581
Type	Compression Spring
O.D.	11/16 "
Length	3 "
I.D.	19/32 "
Wire Diameter	0.048 "
Wire Gauge	18
Number of Coils	16
Rate	2 lb./in.
Maximum Work Load	7 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.09 lb
