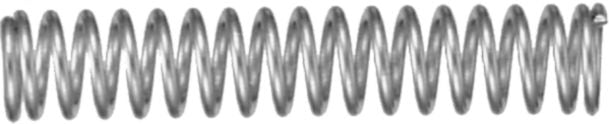

Compression Spring 9/32 x 2"
(Pack of
5.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Valve Action® Permanent Paint Marker White
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Yellow
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Prem Black Nitrile Glvs, XLG
Couldn't load pickup availability
TigerGrip 8 Mil Nitrile Glove Orange X-Large
Couldn't load pickup availability
Valve Action® Permanent Paint Marker White
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Valve Action® Permanent Paint Marker White
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Yellow
Couldn't load pickup availability
Automotive Refinishing Tape 1" x 60 Yards
Couldn't load pickup availability

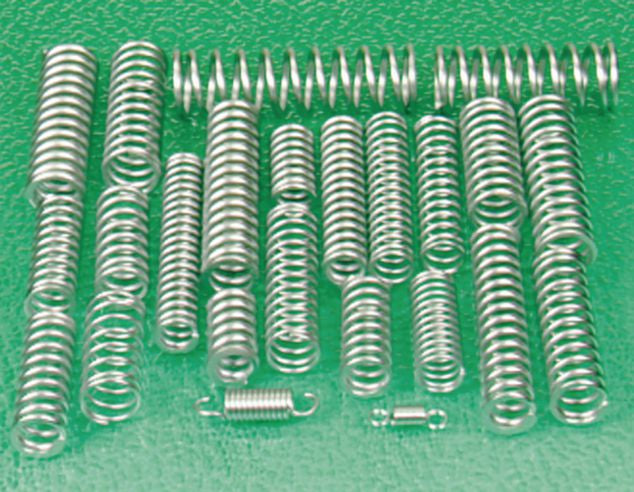

Compression and Extension Spring Kit 76Pcs
Couldn't load pickup availability
Compression Spring 7/32 x 2"
Couldn't load pickup availability
Compression Spring 3/8 x 2-1/2"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89580 |
|---|---|
| Type | Compression Spring |
| O.D. | 3/8 " |
| Length | 2 " |
| I.D. | 9/32 " |
| Wire Diameter | 0.048 " |
| Wire Gauge | 18 |
| Number of Coils | 18 |
| Rate | 12.7 lb./in. |
| Maximum Work Load | 14 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
