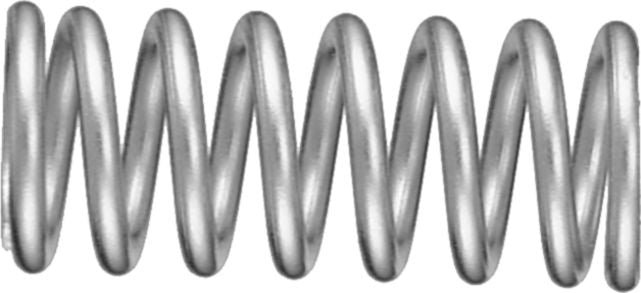

Compression Spring, Steel, 11 Wire Gauge, 5/8" ID, 7/8" OD, 2" Length, 8-1/4 Coils, 90lbs Maximum Work Load
(Pack of 2)

SKU:89618 Item#: 89618

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

Oil-Only Sorbent Pad

Universal Three-Ply Heavyweight Sorbent Pads

Valve Action® Permanent Paint Marker Orange

Premium Nitrile Gloves, Orange, 6 Mil, Large, Box

Premium Nitrile Gloves, Black, 6 Mil, Medium, Box

BK1 Bearkat Safety Glasses

Locknut with Nylon Insert Grade 8 5/16-18

Hex Nut Grade 8 Alloy Steel 1/4-20

Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper

Item#: DY89310247

Valve Action® Permanent Paint Marker Green

Automotive Refinishing Tape 3/4" x 60 Yards

Valve Action® Permanent Paint Marker Blue

Compression Spring 15/32 x 3"

Compression Spring 11/16 x 3"

Compression Spring 21/32 x 3"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89618
Type	Compression Spring
O.D.	7/8 "
Length	2 "
I.D.	5/8 "
Wire Diameter	0.120 "
Wire Gauge	11
Number of Coils	8-1/4
Rate	110 lb./in.
Maximum Work Load	90 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.16 lb
