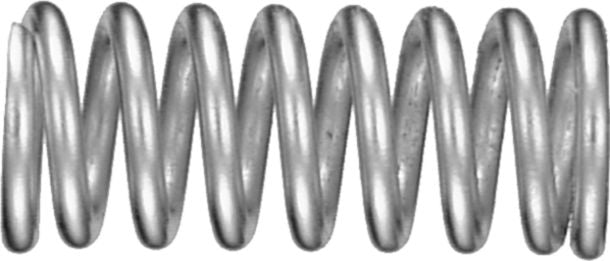

Compression Spring, Steel, 11 Wire Gauge, 9/16" ID, 13/16" OD, 1-7/8" Length, 8-1/2 Coils, 90lbs Maximum Work Load
(Pack of
2)
SKU:89615 Item#: 89615
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
Frequently Bought Together
Compression Spring Kit 166Pcs
Couldn't load pickup availability
Compression and Extension Spring Kit 76Pcs
Couldn't load pickup availability
Compression Spring 1/4 x 1-1/2"
Couldn't load pickup availability
Magic Monkey
Couldn't load pickup availability
1"x3" Heavy Woven Fabric Bandages
Couldn't load pickup availability
WypAll X60 Teri Wiper 9.1 x 16.8"
Couldn't load pickup availability
Sqweeze® ZERO – Sugar Free Hydration Freeze Pops
Couldn't load pickup availability
Auto-Darkening Panoramic View Welding Helmet
Couldn't load pickup availability
Diamond Texture Premium Nitrile Gloves, Orange, 8 Mil, X-Large, 90/Box
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Round Tag Brass 1-3/8"
Couldn't load pickup availability
Water-Resistant Cloth Tape Black 2" x 50'
Couldn't load pickup availability
Small Medium and Large Funnel Kit 3Pcs
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89615 |
|---|---|
| Type | Compression Spring |
| O.D. | 13/16 " |
| Length | 1-7/8 " |
| I.D. | 9/16 " |
| Wire Diameter | 0.120 " |
| Wire Gauge | 11 |
| Number of Coils | 8-1/2 |
| Rate | 149 lb./in. |
| Maximum Work Load | 90 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
