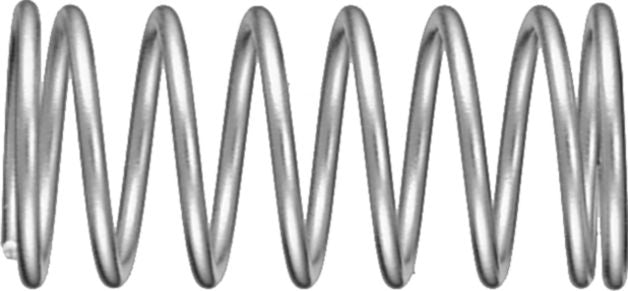

Compression Spring, Steel, 14 Wire Gauge, 3/4" ID, 15/16" OD, 2" Length, 8 Coils, 20lbs Maximum Work Load
(Pack of 2)

SKU:89617 Item#: 89617

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

Oil-Only Sorbent Pad

Universal Three-Ply Heavyweight Sorbent Pads

Valve Action® Permanent Paint Marker Orange

500G Tsunami Grip® Light Coated Gloves

Premium Nitrile Gloves, Orange, 6 Mil, Large, Box

Premium Nitrile Gloves, Black, 6 Mil, Medium, Box

SAE Flat Washer Thru-Hardened Steel 1/4"

Locknut with Nylon Insert Grade 8 5/16-18

Hex Nut Grade 8 Alloy Steel 1/4-20

Valve Action® Permanent Paint Marker Silver

Valve Action® Permanent Paint Marker Green

Automotive Refinishing Tape 3/4" x 60 Yards

Compression Spring 17/32 x 2-3/4"

Compression Spring 15/32 x 3"

Compression Spring 11/16 x 3"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89617
Type	Compression Spring
O.D.	15/16 "
Length	2 "
I.D.	3/4 "
Wire Diameter	0.080 "
Wire Gauge	14
Number of Coils	8
Rate	15.2 lb./in.
Maximum Work Load	20 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.08 lb
