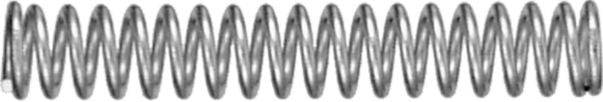

Compression Spring 7/32 x 2"
(Pack of
10.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 16-36
Frequently Bought Together
Drip Tray Chemical Resistant 2gal
Couldn't load pickup availability
PhysiciansCare Ibuprofen, 200 mg
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Spray Cup Bundle - 180ml Solvent-Based Chemical
Couldn't load pickup availability
Compression Spring 3/8 x 1-7/8"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89572 |
|---|---|
| Type | Compression Spring |
| O.D. | 5/16 " |
| Length | 2 " |
| I.D. | 7/32 " |
| Wire Diameter | 0.048 " |
| Wire Gauge | 18 |
| Number of Coils | 19 |
| Rate | 22.6 lb./in. |
| Maximum Work Load | 17 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.11 lb |
