Home Compression Compression Spring 17/32 x 2-1/2"
Compression

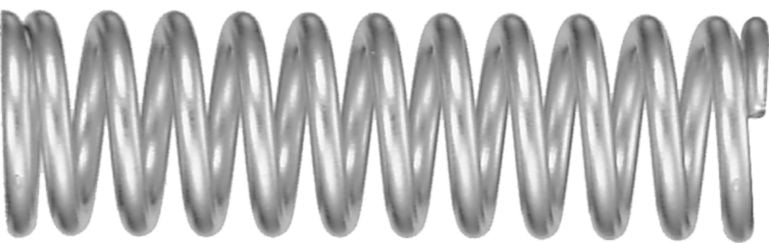

Compression Spring, Steel, 12 Wire Gauge, 17/32" ID, 3/4" OD, 2-1/2" Length, 12-1/4 Coils, 60lbs Maximum Work Load
(Pack of 2)

Item#: 89603

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Read More
Check Availability

Catalog page#: 16-36, 16-38

Frequently Bought Together


Compression Spring 5/16 x 2"

Item#: 89579

Compression Spring 11/32 x 2-1/4"

Item#: 89576

Compression Spring 3/4 x 3"

Item#: 89611

Valve Action® Permanent Paint Marker Red

Item#: CW4891

Automotive Refinishing Tape 2" x 60 Yards

Item#: 50117

WypAll X80 ShopPro Towel 12.5 x 13.4"

Item#: 29372

Qwik Stik® Electrolyte Powder Mix 0 Cal Fruit Punch

Item#: SF10405

Split Key Ring 1"

Item#: 95873

Valve Action® Permanent Paint Marker White

Item#: 99063

Butt Connector 16 to 14 AWG Blue

Item#: 92823

Nylon Cable Tie 4" Black

Item#: 94609

180-degree Wide Beam Head Light with Side Light

Item#: 1639013

Wypall L30 Wiper 16.4 x 9.8"

Item#: 28136

Valve Action® Permanent Paint Marker Black

Item#: 1351780

WypAll X60 Teri Wiper 12.5 x 13.4"

Item#: 29374

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#: 89603
Type Compression Spring
O.D. 3/4 "
Length 2-1/2 "
I.D. 17/32 "
Wire Diameter 0.105 "
Wire Gauge 12
Number of Coils 12-1/4
Rate 68.5 lb./in.
Maximum Work Load 60 lb
Material Steel
UNSPSC #: 31161904
TAA Compliant: Yes
Weight: 0.15 lb
