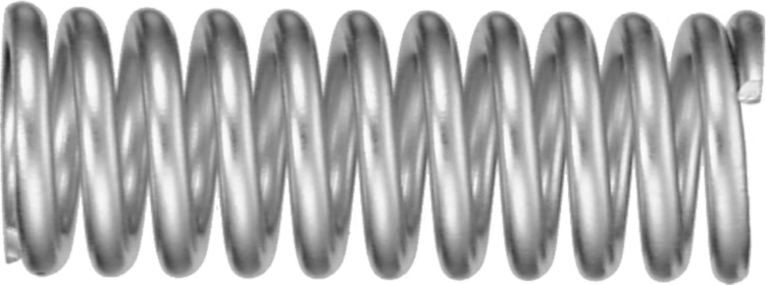

Compression Spring, Steel, 10 Wire Gauge, 19/32" ID, 7/8" OD, 2-1/2" Length, 11-1/2 Coils, 110lbs Maximum Work Load
(Pack of 2)

SKU:89604 Item#: 89604

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-38

Frequently Bought Together

Compression Spring 3/4 x 2"

Compression Spring 1/2 x 1-1/4"

Compression Spring 15/32 x 3"

Universal Sorbent Pad

Wyper Super Prep Towel 9 x 14"

Universal Sorbent Pad

Premium Nitrile Gloves, Black, 6 Mil, X-Large, 100/Box

Premium Nitrile Gloves, Black, 6 Mil, Large, 100/Box

Qwik Stik® Electrolyte Powder Mix Grape

Nylon Cable Tie 8" Black

Nylon Cable Tie 15.25" Black

Nylon Cable Tie 11.75" Black

Wyper Super Prep Towel 9 x 14"

Split Key Ring 1"

Valve Action® Permanent Paint Marker White

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89604
Type	Compression Spring
O.D.	7/8 "
Length	2-1/2 "
I.D.	19/32 "
Wire Diameter	0.135 "
Wire Gauge	10
Number of Coils	11-1/2
Rate	120 lb./in.
Maximum Work Load	110 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.25 lb
