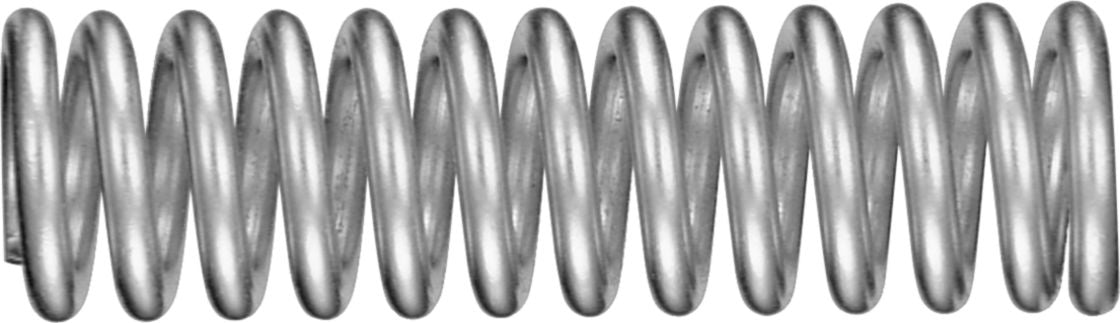

Compression Spring, Steel, 8 Wire Gauge, 21/32" ID, 1" OD, 3-1/2" Length, 13 Coils, 175lbs Maximum Work Load
(Pack of 2)

SKU:89597 Item#: 89597

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-38

Frequently Bought Together

Compression and Extension Spring Kit 322Pcs

Compression Spring 1/4 x 1-1/2"

Compression Spring 1/4 x 2-1/4"

WypAll X60 Teri Wiper 12.5 x 13.4"

Bullseye #12 Bottle with Trigger Sprayer 22fl.oz

Blue GT Series Extra Heavy Duty Wiper Roll

SafetyPro 8 Mil Nitrile Glove Orange Large

500G Tsunami Grip® Light Coated Gloves

Valve Action® Permanent Paint Marker Yellow

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

SAE Flat Washer Thru-Hardened Steel 3/8"

Valve Action® Permanent Paint Marker Blue

Round Tag Brass 1"

Red GT Series Extra Heavy Duty Wiper Roll

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89597
Type	Compression Spring
O.D.	1 "
Length	3-1/2 "
I.D.	21/32 "
Wire Diameter	0.162 "
Wire Gauge	8
Number of Coils	13
Rate	149 lb./in.
Maximum Work Load	175 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.49 lb
