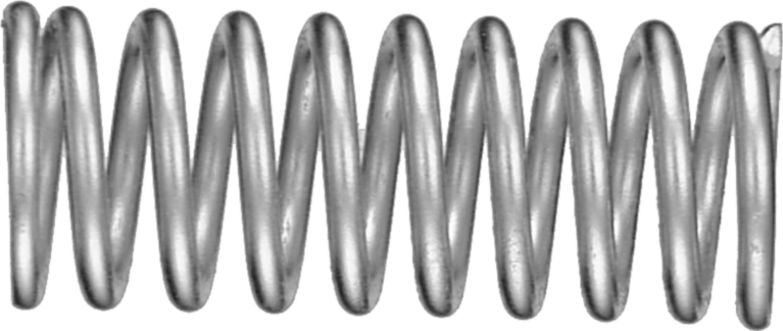

Compression Spring, Steel, 11 Wire Gauge, 3/4" ID, 1" OD, 2-1/2" Length, 10 Coils, 70lbs Maximum Work Load
(Pack of 2)

SKU:89621 Item#: 89621

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

Compression Spring 13/32 x 2"

Compression Spring 9/16 x 3-1/2"

Compression Spring 3/8 x 2-3/4"

Reclaimed Mixed Color T-Shirt Rags

Round Tag Brass 1-1/2"

Universal Sorbent Pad

Premium Nitrile Gloves, Black, 6 Mil, Large, 1,000/Case

Premium Nitrile Gloves, Orange, 6 Mil, Large, 100/Box

BK1 Bearkat Safety Glasses

USS Flat Washer Thru-Hardened Steel 1/4"

Vision Pro Super

Item#: DY21061040

Flat Washer Grade 12 Thru-Hardened Steel M8

WypAll X80 ShopPro Towel 9.1 x 16.8"

Bullseye #48 Trigger Sprayer with 32oz Bottle

Friction Tape 3/4" x 60'

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89621
Type	Compression Spring
O.D.	1 "
Length	2-1/2 "
I.D.	3/4 "
Wire Diameter	0.120 "
Wire Gauge	11
Number of Coils	10
Rate	43.5 lb./in.
Maximum Work Load	70 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.23 lb
