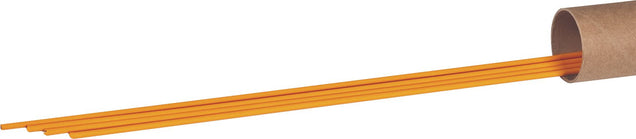

201 The Elite Blue Flux Coated Brazing Alloy 1/16
(Pack of 5.0)

Lawson Products

Flux-coated brazing alloy with high tensile strength and exceptional ductility for joining all types of metals.
• High-Strength Joints – For dependable repairs
• High Capillarity – Thin flowing action allows complete joint fills
• Low Temperature – Easy to use for most maintenance applications
• Narrow Plastic Range – Allows control of the heat input to build up, shape or flow into joints
• Versatile – Joins steel, copper, brass, bronzes, cast iron, tungsten carbide, refractory metals and nickel alloys
• Cadmium free and low fume coating
• Tensile Strength: Up to 95,000 PSI/655 Mpa
• Machinability: Excellent
• Plastic Range: Approximately 30°F/17°C
• Working Temp: Approximately 1690°F/921°C
• Electrical Conductivity: 8% IACS
• Flux Coating: Blue

Check Availability

Quantity

Frequently Bought Together

44 Silver Bare Brazing Rod 1/16"

41 Silver Flux Coated Brazing Rod 1/16"

46 Sil-Phos Bare Brazing Rod 1/8"

201 The Elite Bare Brazing Alloy 1/16X18

Item#: EG20171600

44 Silver Bare Brazing Rod 3/32"

44 Silver Bare Brazing Rod 1/16"

PTO Pin Lock 1/4 x 2-1/2"

SAE Flat Washer Thru-Hardened Steel 1/4"

Superbutt Connector 16 to 14 AWG Blue

338 Mild/Carbon Steel Stick Rod Electrode 1/8"

3880 Stainless Steel TIG Wire 3/32"

Hand Held Compact Mini Torch

Item#: DY80000078

Product Description

Flux-coated brazing alloy with high tensile strength and exceptional ductility for joining all types of metals.
• High-Strength Joints – For dependable repairs
• High Capillarity – Thin flowing action allows complete joint fills
• Low Temperature – Easy to use for most maintenance applications
• Narrow Plastic Range – Allows control of the heat input to build up, shape or flow into joints
• Versatile – Joins steel, copper, brass, bronzes, cast iron, tungsten carbide, refractory metals and nickel alloys
• Cadmium free and low fume coating
• Tensile Strength: Up to 95,000 PSI/655 Mpa
• Machinability: Excellent
• Plastic Range: Approximately 30°F/17°C
• Working Temp: Approximately 1690°F/921°C
• Electrical Conductivity: 8% IACS
• Flux Coating: Blue

Technical Specifications

Item#:	EG20170000
Welding Process	Brazing
Type	Flux-Coated Brazing Rod
Diameter	1/16 "
Length	18 "
Tensile Strength	95,000 PSI
Color	Blue
UNSPSC #:	23271804
TAA Compliant:	Yes
Weight:	6.3 lb
