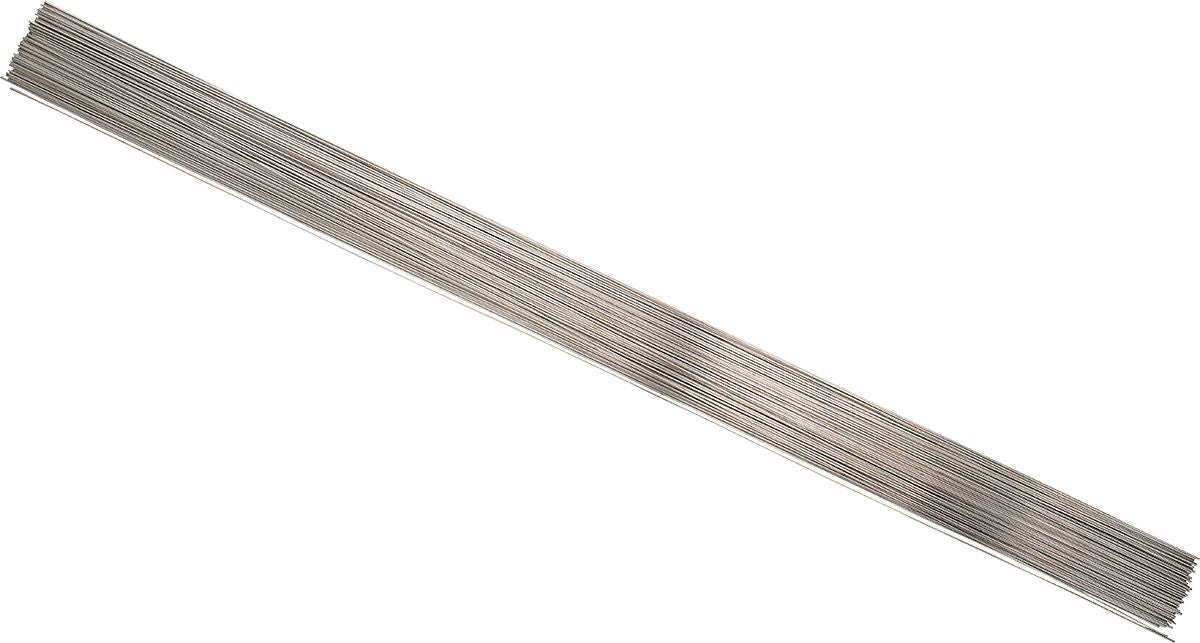

241 Versatile Brazing Alloy High Ductility High Strength 34000 Tensile Elongation 25%
(Pack of
1)
SKU:EG24170000 Item#: EG24170000
Versatile aluminum brazing alloy formulated to provide high-quality deposits on all weldable grades of aluminum.
• Two-Phase Plastic Range – Enables deposit to solidify quickly for excellent results on poor-fitting joints or building up sections
• Thin Flowing Ability – Allows great results on thin gauge or small parts
• Very High Ductility – Resists cracking
• High-strength deposits
• Corrosion resistant
• Use with 341 X-Ergon aluminum brazing flux
• Tensile Strength: Up to 34,000 PSI/234 Mpa
• Elongation: 25%
• Working Temperature: 1000°F/538°C
• Corrosion Resistance: Good
• Color Match: Good (will darken if anodized)
• Coating: Bare
Couldn't load pickup availability
Catalog page#: LE-132
Frequently Bought Together
53 Pot Metal Bare Brazing Rod 1/8"
Couldn't load pickup availability
241 Premium Aluminum Brazing Alloy 1/8x36
Couldn't load pickup availability
52 Aluminum/Zinc Bare Brazing Rod 1/8"
Couldn't load pickup availability
54 Medium Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
52 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
52 Aluminum/Zinc Bare Brazing Rod 1/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability
Product Description
Versatile aluminum brazing alloy formulated to provide high-quality deposits on all weldable grades of aluminum.• Two-Phase Plastic Range – Enables deposit to solidify quickly for excellent results on poor-fitting joints or building up sections
• Thin Flowing Ability – Allows great results on thin gauge or small parts
• Very High Ductility – Resists cracking
• High-strength deposits
• Corrosion resistant
• Use with 341 X-Ergon aluminum brazing flux
• Tensile Strength: Up to 34,000 PSI/234 Mpa
• Elongation: 25%
• Working Temperature: 1000°F/538°C
• Corrosion Resistance: Good
• Color Match: Good (will darken if anodized)
• Coating: Bare
Technical Specifications
| Item#: | EG24170000 |
|---|---|
| Welding Process | Brazing |
| Type | Bare Brazing Rod |
| Diameter | 1/16 " |
| Length | 36 " |
| Tensile Strength | 34,000 PSI |
| Melting Temperature | 110-1,250 °F |
| Base Metal | Aluminum |
| Recommended Flux | 341 |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 2.17 lb |
