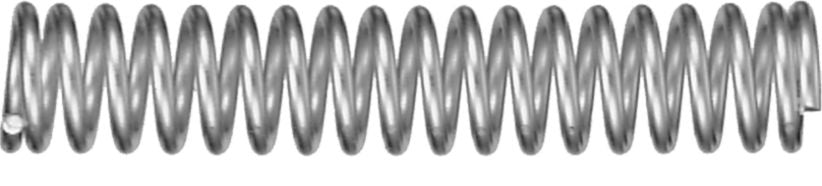

Compression Spring, Steel, 15 Wire Gauge, 11/32" ID, 1/2" OD, 2-3/4" Length, 19 Coils, 34lbs Maximum Work Load
(Pack of 5)

SKU:89574 Item#: 89574

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-37

Frequently Bought Together

Compression Spring 17/32 x 2-3/4"

Compression Spring 13/32 x 2-3/8"

Compression Spring 19/32 x 3"

Valve Action® Permanent Paint Marker Yellow

Universal High-Visibility Sorbent Pad

General Purpose Duct Tape 48 mm x 55m

Wyper Super Prep Towel 9 x 14"

Universal Sorbent Pad

SafetyPro 8 Mil Nitrile Glove Orange X-Large

High Solids Paints Gloss Black

USS Flat Washer Thru-Hardened Steel 1/4"

USS Flat Washer Thru-Hardened Steel 3/8"

Valve Action® Permanent Paint Marker Red

Automotive Refinishing Tape 2" x 60 Yards

WypAll X80 ShopPro Towel 12.5 x 13.4"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89574
Type	Compression Spring
O.D.	1/2 "
Length	2-3/4 "
I.D.	11/32 "
Wire Diameter	0.072 "
Wire Gauge	15
Number of Coils	19
Rate	25.2 lb./in.
Maximum Work Load	34 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.17 lb
