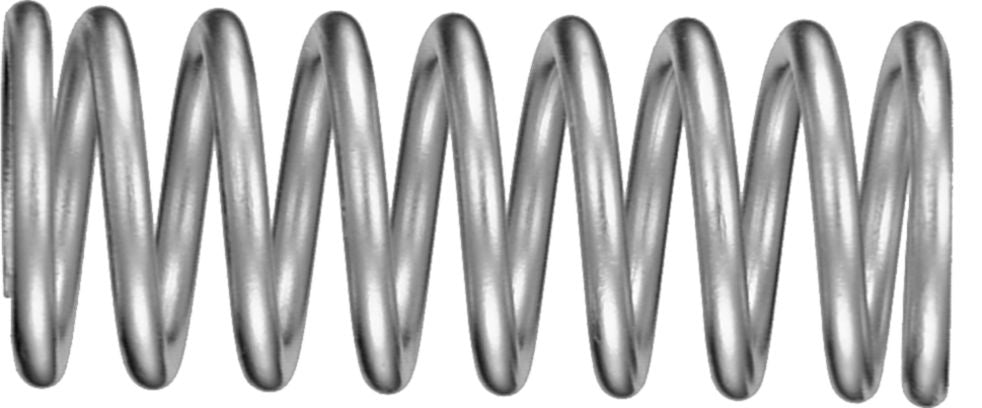

Compression Spring, Steel, 9 Wire Gauge, 15/16" ID, 1-1/4" OD, 3" Length, 9 Coils, 100lbs Maximum Work Load
(Pack of 2)

SKU:89612 Item#: 89612

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

Compression Spring 3/4 x 3"

Compression Spring 11/16 x 3"

Compression Spring 9/16 x 3-1/8"

WypAll X80 ShopPro Towel 12.5 x 13.4"

Auto-Darkening Panoramic View Welding Helmet

Item#: EG70828000

Wypall L30 Wiper 16.4 x 9.8"

Valve Action® Permanent Paint Marker White

WypAll X80 ShopPro Towel 12.5 x 16.8"

Sqweeze® Hydration Freeze Pops

180-degree Wide Beam Head Light with Side Light

USS Flat Washer Thru-Hardened Steel 5/16"

Stepdown Butt Connector 22 to 18/16 to 14 AWG

WypAll X60 Teri Wiper 12.5 x 13.4"

Bullseye #12 Bottle with Trigger Sprayer 22fl.oz

Blue GT Series Extra Heavy Duty Wiper Roll

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89612
Type	Compression Spring
O.D.	1-1/4 "
Length	3 "
I.D.	15/16 "
Wire Diameter	0.148 "
Wire Gauge	9
Number of Coils	9
Rate	72.3 lb./in.
Maximum Work Load	100 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.35 lb
