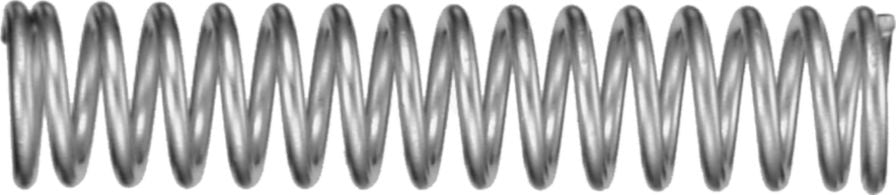

Compression Spring, Steel, 14 Wire Gauge, 15/32" ID, 5/8" OD, 3" Length, 16 Coils, 35lbs Maximum Work Load
(Pack of 5)

SKU:89582 Item#: 89582

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-37

Frequently Bought Together

Compression Spring 7/32 x 1-5/8"

Compression Spring 5/16 x 1-1/2"

Compression Spring 1/4 x 1-3/8"

Universal Single-Ply Medium Weight Sorbent Pads

Valve Action® Permanent Paint Marker Black

Oil-Only Sorbent Pad

Premium Nitrile Gloves, Orange, 6 Mil, X-Large, 100/Box

Premium Nitrile Gloves, Black, 6 Mil, X-Large, 1,000/Case

SafetyPro 8 Mil Nitrile Glove Orange Large

Butt Connector 22 to 18 AWG Red

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Round Tag Brass 1-1/2"

Automotive Refinishing Tape 1" x 60 Yards

Valve Action® Permanent Paint Marker Orange

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89582
Type	Compression Spring
O.D.	5/8 "
Length	3 "
I.D.	15/32 "
Wire Diameter	0.080 "
Wire Gauge	14
Number of Coils	16
Rate	25.3 lb./in.
Maximum Work Load	35 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.24 lb
