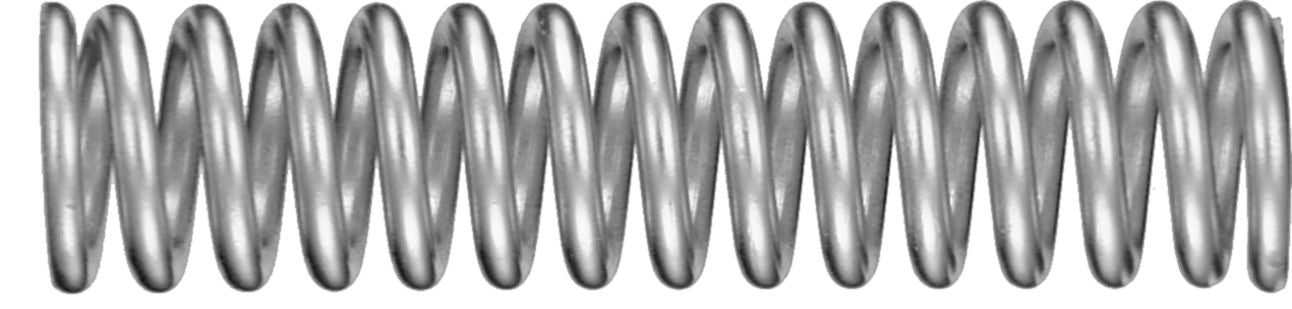

Compression Spring, Steel, 9 Wire Gauge, 5/8" ID, 15/16" OD, 4" Length, 15 Coils, 140lbs Maximum Work Load
(Pack of 2)

SKU:89595 Item#: 89595

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-38

Frequently Bought Together

Compression Spring 19/32 x 2"

Compression Spring 17/32 x 2-1/2"

Compression Spring 15/32 x 2-1/2"

Valve Action® Permanent Paint Marker Orange

Valve Action® Permanent Paint Marker Blue

Round Tag Brass 1"

Qwik Stik® Electrolyte Powder Mix Asst

Universal High-Visibility Sorbent Pad

General Purpose Duct Tape 48 mm x 55m

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Locknut with Nylon Insert Grade 8 5/16-18

PTO Pin Lock 1/4 x 2-1/2"

WypAll X60 Teri Wiper 9.1 x 16.8"

Plastic Rotary Drum Pump 20 to 55gal

Humpback All-in-One Pressure Washer System 3,000 PSI

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89595
Type	Compression Spring
O.D.	15/16 "
Length	4 "
I.D.	5/8 "
Wire Diameter	0.148 "
Wire Gauge	9
Number of Coils	15
Rate	106 lb./in.
Maximum Work Load	140 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.37 lb
