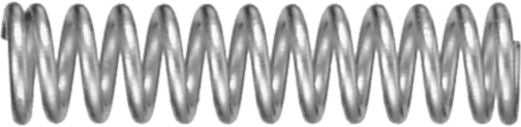

Compression Spring 9/32 x 1-3/4"
(Pack of
10.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 16-36
Frequently Bought Together
WypAll X60 Teri Wiper 12.5 x 16.8"
Couldn't load pickup availability
Bullseye #12 Bottle with Trigger Sprayer 22fl.oz
Couldn't load pickup availability
Oil-Only Sorbent Pad
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Citrus
Couldn't load pickup availability
Universal High-Visibility Sorbent Pad
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix 0 Cal Strawberry Lemonade
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Small Medium and Large Funnel Kit 3Pcs
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
Couldn't load pickup availability
Compression Spring 17/32 x 3-3/4"
Couldn't load pickup availability
Compression Spring 5/16 x 3/4"
Couldn't load pickup availability
Compression Spring 5/16 x 2"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89571 |
|---|---|
| Type | Compression Spring |
| O.D. | 13/32 " |
| Length | 1-3/4 " |
| I.D. | 9/32 " |
| Wire Diameter | 0.063 " |
| Wire Gauge | 16 |
| Number of Coils | 13 |
| Rate | 47.7 lb./in. |
| Maximum Work Load | 28 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
