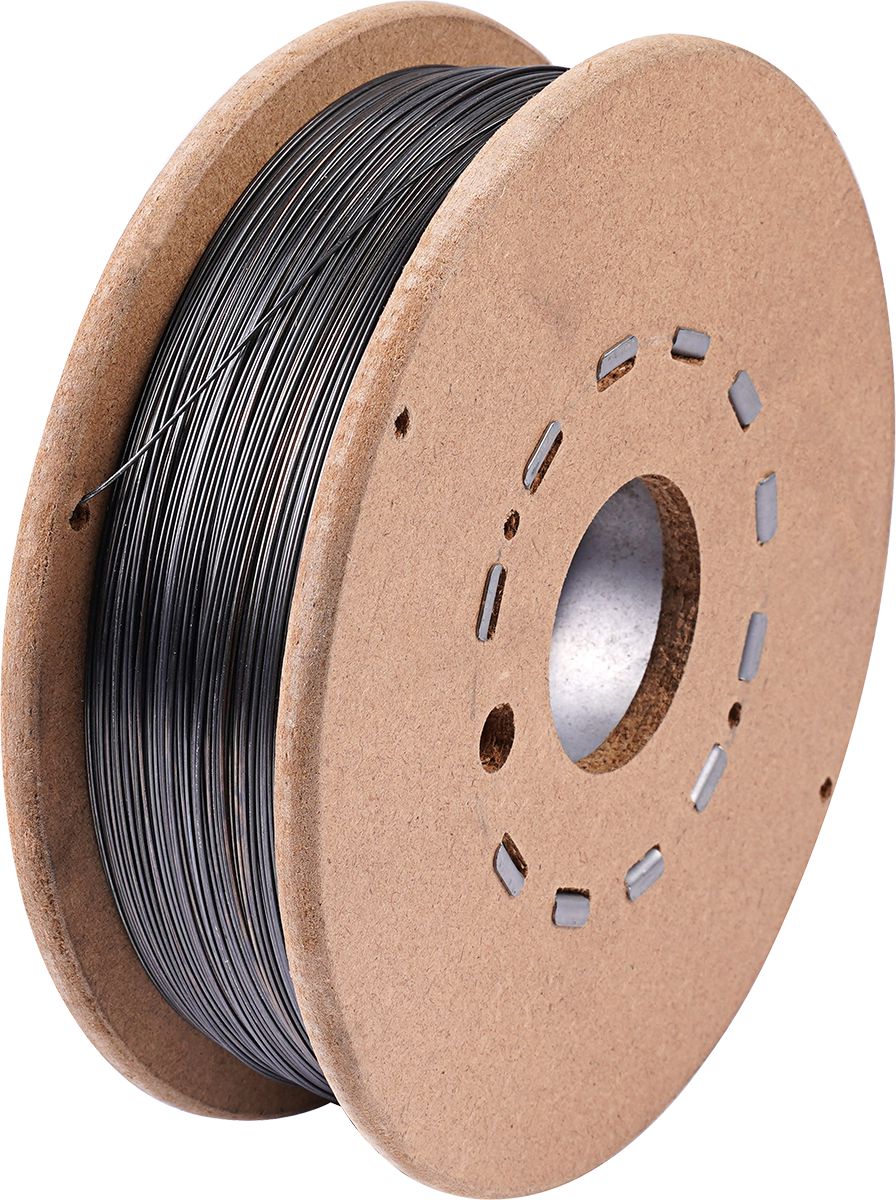

631Cast-Iron Flux Core Wire Desingned To Weld All Grades Of Cast Iron/Duel Sheiled Wire/Gas 98%Ar 2%Co2 Polarity Dc+Tensile 73000
(Pack of
11)
SKU:EG63140045 Item#: EG63140045
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.
• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Frequently Bought Together
211 Cast Iron TIG Wire 1/16"
Couldn't load pickup availability
631 Cast-Weld Fc Alloy Wire .035X11LB
Couldn't load pickup availability
222 Cast Iron Stick Rod Electrode 3/32"
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 3/32"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
345 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
Oxy-Therm System
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/8"
Couldn't load pickup availability
211 Cast Iron TIG Wire 3/32"
Couldn't load pickup availability
Swivel Head Ratchet 1/4 Drive
Couldn't load pickup availability
Z-Flex 2" Dia., 60 Grit, Roll Lock Mount, Zirconia Alumina
Couldn't load pickup availability
Cryo V Burr Tri Pak
Couldn't load pickup availability
Swivel Head Ratchet 1/4 Drive
Couldn't load pickup availability
Z-Flex 2" Dia., 60 Grit, Roll Lock Mount, Zirconia Alumina
Couldn't load pickup availability
Cryo V Burr Tri Pak
Couldn't load pickup availability
Product Description
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Technical Specifications
| Item#: | EG63140045 |
|---|---|
| Welding Process | Flux-Core Arc Welding |
| Type | Flux-Cored Wire |
| Diameter | .045 " |
| Base Metal | Cast Iron |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 12.05 lb |
