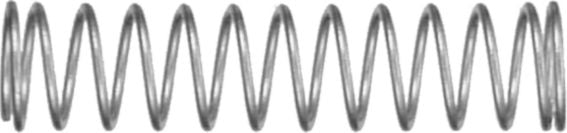

Compression Spring 3/8 x 1-7/8"
(Pack of
10.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
WypAll X80 ShopPro Towel 9.1 x 16.8"
Couldn't load pickup availability
Wypall L30 Wiper 16.4 x 9.8"
Couldn't load pickup availability
Red GT Series Extra Heavy Duty Wiper Roll
Couldn't load pickup availability
LionGrip 8mil Nitrile Glove Black Medium
Couldn't load pickup availability
Prem Blk Ntrl Glvs, Lrg, CS
Couldn't load pickup availability
Economy Grade Top Grain Cowhide Leather Drivers Glove - Keystone Thumb
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Plastic Rotary Drum Pump 20 to 55gal
Couldn't load pickup availability
Bullseye #12 Bottle with Trigger Sprayer 22fl.oz
Couldn't load pickup availability
Small Medium and Large Funnel Kit 3Pcs
Couldn't load pickup availability
Compression Spring 5/8 x 4"
Couldn't load pickup availability
Compression Spring 15/32 x 2-1/2"
Couldn't load pickup availability
Compression Spring 17/64 x 1"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89623 |
|---|---|
| Type | Compression Spring |
| O.D. | 7/16 " |
| Length | 1-7/8 " |
| I.D. | 3/8 " |
| Wire Diameter | 0.035 " |
| Wire Gauge | 20 |
| Number of Coils | 13 |
| Rate | 3.3 lb./in. |
| Maximum Work Load | 5 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
